| Brand Name : | YHDAA |
| Model Number : | YHD-1100DB |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

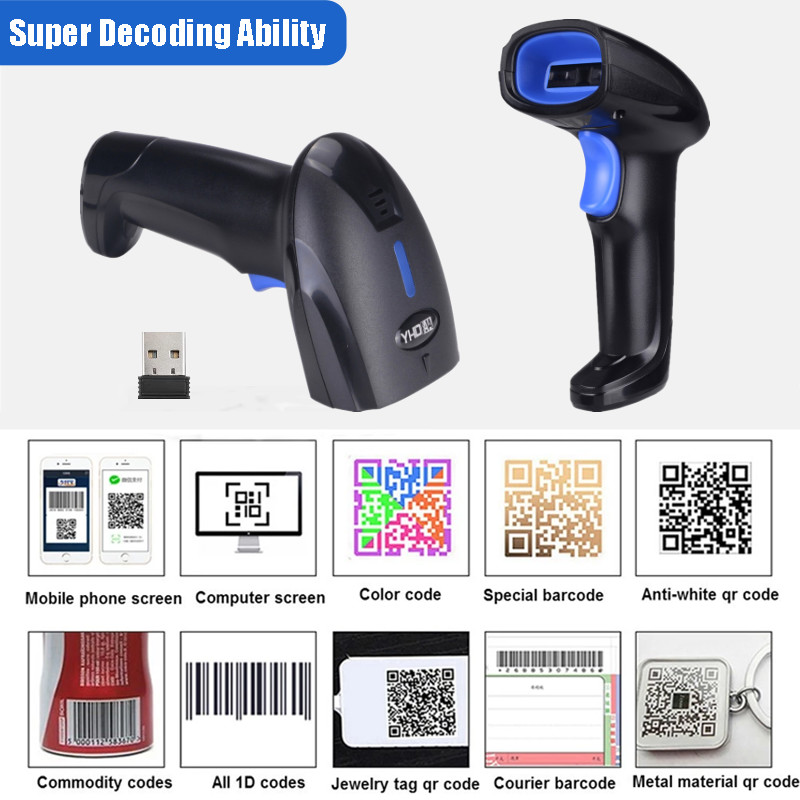

Handheld 2D Barcode Scanner bar code reader for Fast and Accurate Data Capture
The 2D Barcode Scanner is a powerful tool to quickly and accurately read multiple types of barcodes, including 2D codes. It is equipped with a scanning interface of USB/Bluetooth/2.4 Wireless and is compatible with multiple systems. The scanner is capable of manual, automatic, and continuous scanning modes, making it the perfect choice for businesses requiring a reliable solution for their barcode scanning needs.
The 2D Barcode Scanner is the perfect choice for those who need to scan QR codes, matrix barcodes, and other 2D symbols. It is a powerful, efficient, and versatile solution for businesses that require quick and accurate scanning results. It is also suitable for a variety of applications, including retail, healthcare, logistics, and manufacturing. With its reliable scanning performance and multiple scanning modes, it is an ideal choice for a wide range of barcode applications.
Features
● Bluetooth/2.4G/Wired Mode, 3modes for option.
● Support reading bar codes from screen.
● 32-Bit ARM processor and scan speed 500scans/sec.
● Powerful decode ability, fast scanning 1D/2D barcodes.
● Supports Handheld / Continuous / Auto-Induction , 3modes for option
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● Built-in 1800mAh Battery, it can support 20 hours Continuous scanning and 2 months standby after 4hours full charge.
● Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
| Product Specification: YHD-1100DB 2D Bluetooth Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode:Bluetooth/2.4G/Wired | Storage:10000 barcodes | |
| Distance:50m/100m/1.5m | CPU:ARM 32-bit Cortex | |
| Sensor:640*480 CMOS | Light aimer: 617nm LED | |
| Resolution :4mil | Indication:Buzzer & LED | |
Battery: 1800mAh | Illumination: 6500K LEDs | |
| Decoding speed:500scans/sec | Bit error rate :1/5million | |
| Button life :5000,000 times | Printing contract :≥25% | |
250Lux Depth of Field | 13mil-EAN13 | 50-240mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-280mm | |
| 10mil-PDF417 | 40-250mm | |
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. | ||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working Temperature: -20℃-50℃ | Storage Temperature: -40℃-60℃ | |
| Working current:38mA--185mA(max peak) | Standby current :30mA | |
| Working time :3 to 7days | Charging power:5V | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
Packing and Shipping
Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28KG
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:12Kg
The 2D Barcode Scanner is securely packaged for shipment. It is wrapped in protective foam and placed in a box. The box is further secured with packing tape and labeled with shipment information.
The box is shipped via a reliable carrier, such as USPS, FedEx, or UPS. Shipping costs are calculated based on the weight and size of the package, as well as the delivery location.
Tracking information is provided to the customer, so they can track their package from the time it leaves the warehouse until it is delivered.
|
|
