YHDAA Receipt Printer 80mm, Direct Thermal Printer with USB Serial Ethernet, Bluetooth

Features

● Support multi languages.

● Cash drawer drive supported.

● User-friendly Design.

● Low-power waste, low-run cost.

● Low cost and high-quality thermal printing.

● Support different density bitmap graphics printing.

● High-speed printing using embedded soft font for all interfaces.

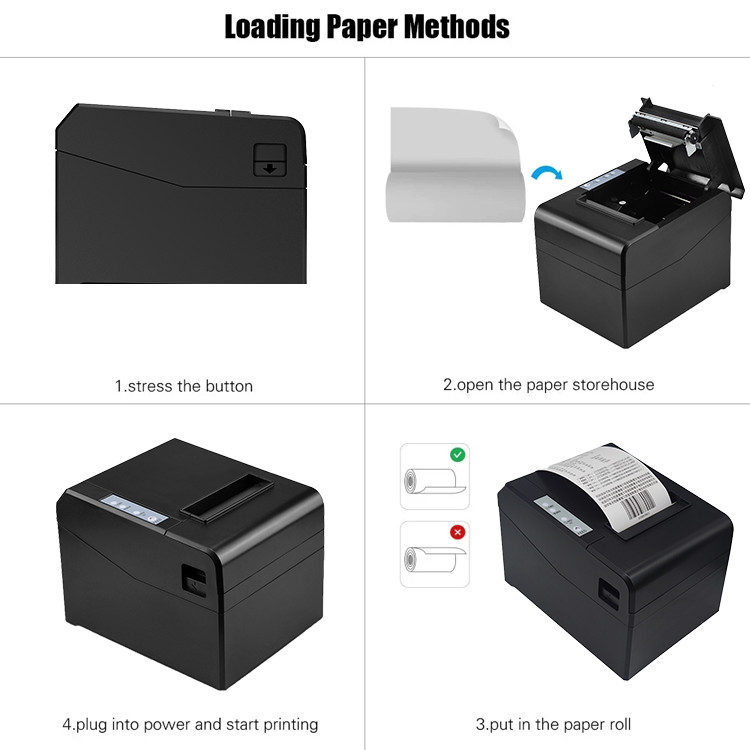

● Easy paper-roll installation, Easy maintenance and Rational structure.

● Optional interface: USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI.

● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.

● Compatible with ESC/POS print instruction set, optional columns and font(adjusted by DIP switch).

● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.

Technical parameters

Interfaces : USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI(Optional)

Print Comand : ESC/POS

Print Method : Thermal Line Printing

Print Speed : 260mm/sec

No. of Total Dots : 576dot/line or 512dot/line ANK Character

Auto Paper Cutter : Full or Partial cut

Print Width : 72±0.5mm

Character Set : Alphanumeric /Chinese Kanji

Print Font : 12 x 24; 24x 24; 9*17; 9*24

NV Flash : 256K bytes

Compatible OS : Window Systems ; Android & IOS Operate Systems

Type : Roll Paper

Width : 79.5±0.5mm

Roll Diameter : 83mm

Paper Thickness : 0.06-0.08mm

Adapter Voltage : DC24V/2.5A

Cash Drawer Control : 12V/1A

Print Head : Reliability

Print Reliability : 100km

Dimension : 18.6*14.5*13.6cm

Unit Weight : 2.5KG(with accessories)

Pieces Per CTN : 8 Pieces

Color : Black

CTN Dimension : 48 x 46 x 36cm

Carton Weight : 17KG

Temperature Working : 0 to 45 Degrees

Humidity Working : 10%-80%

Warantty : 12 months at least

Packaging Details

Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Box *1.

Single Package Size: 230*245*175mm

Single Gross Weight: 1.86KG

8pcs/CTN Carton Size: 49*51*38cm Carton G.W.:17KG

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
