10 Years Barcode Scanners & Thermal Printers Production Experience
3 Years
| Ask Lasest Price | |
| Brand Name : | YHDAA |
| Model Number : | YHD-80A |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

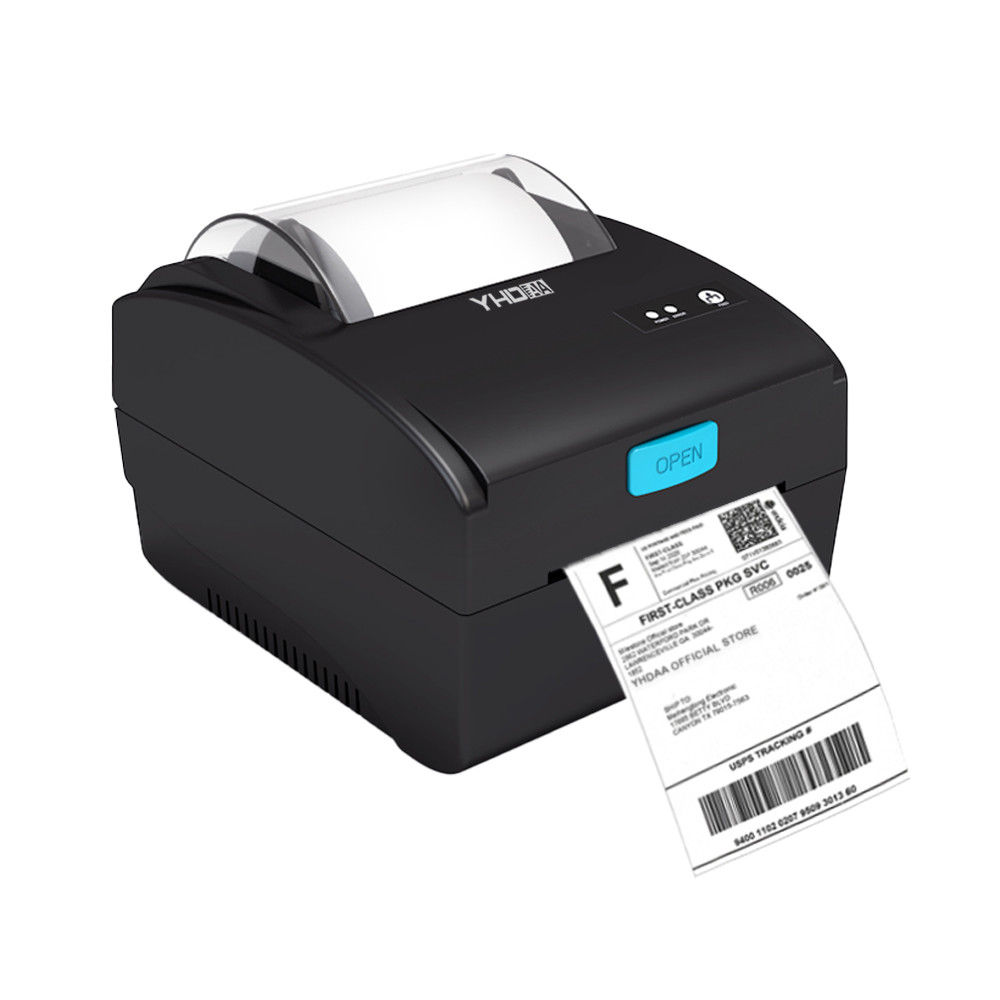

YHDAA 3 Inch Label Makers,Small Business Sticker Printers for Shipping,Labeling,QR Code
Suit for manufacturing and warehousing industry, retail, specimen,marking, post package industry, shelf label, price tag, patient identification, mail delivery label, medical industry and more others.
Features
● Optional interface: USB / USB+LAN / USB+Bluetooth
● Dual Printing Mode: Support thermal paper and thermal label.
● Paper width can be adjusted, support up to 20-80mm width label paper.
● The label printer features high speed, low noise and clear printing.
● No need for carbon transfer ribbon, cost saving and convenient.
● Maximum 160mm per second fast printing speed, 203DPI high resolution.
● Quickly position the paper with a dual media sensor to ensure accurate print position.
● Auto printing temperature control, the machine can offer service time and enjoy longer lifetime.
Technical parameters
Interface : USB / USB+LAN / USB+Bluetooth
Print Comand : TSPL command (CPCL/ESC/POS /command)
Print Method : Direct Line Thermal
Pirnt Speed : 160mm/sec
TPH Life : 50KM
Resolution : 203 Dpi(8 Dot/mm)
Print Width : 20-80mm (Max. 576 points)
Compatible OS : Window Systems, Android & iOS Operate Systems
Input : AC 110V/220V, 50～60Hz ; Output:DC 24V/1.5A
Paper Type : Continuous paper, Label paper, Folded paper, Tag paper
Available Max Paper Width : 20-80mm
Paper Thickness : 0.06-0.3mm
Max Paper Width : 76mm
Diameter of Paper Warehouse : 100mm (MAX)
Dimension : 200*160*139.5mm
Unit Weight : 1.40kgs (with accessories)
Color : Black
CTN Dimension : 49 x 46 x 36 cm
Pieces Per CTN : 8 Pieces
CTN Gross Weight : 12kgs
Temperature Working : +0 to 50 ℃ Storage: -20 to 60 ℃
Humidity Working : 20%-85% RH Storage: 5%-95%RH
Mechanical Noise : less than 60dB (A weighted RMS)
Warantty : 12 months at least
One-dimentional code UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODEBAR/ ITF/ CODE39/ CODE93/ CODE128,Two-dimensional code,QR Code, PDF417
Driver : Win2003, Win XP, Win 7/8/10/11, MACOS,Support IOS / Android
Packaging Details
Standard List: Printer*1, USB Cable *1, Adapter *1, CD Driver*1, Manual *1, Power cable, Box *1.
Single Package Size: 235*220*175mm
Single Gross Weight: 1.4KG
8pcs/CTN Carton Size:49*46*36cm Carton G.W.:12KG
|
|
