M300C OEM 1D Barcode Scanner Module Scanning Mobile Screen Code

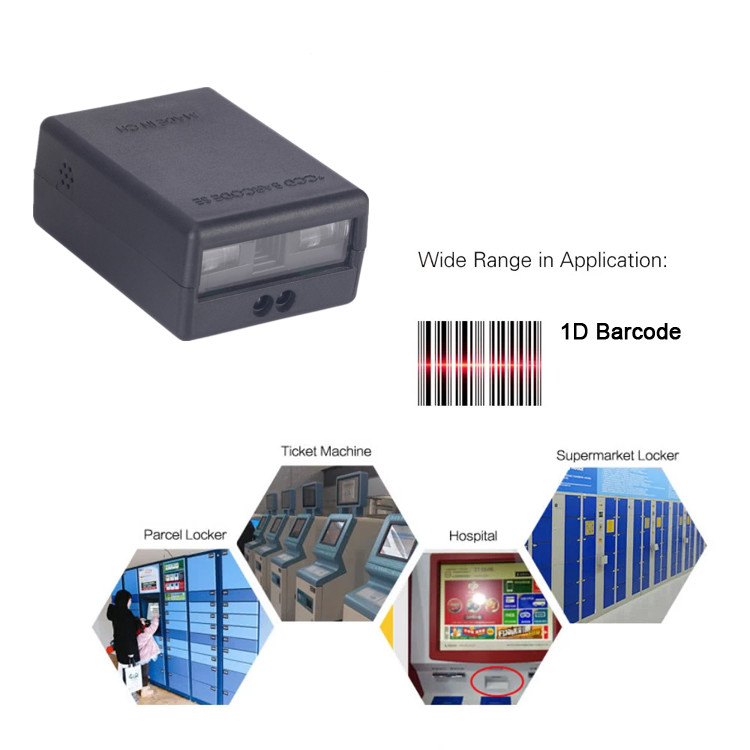

The scanning method can be triggered by keystrokes or automatic continuous scanning, the communication method can be selected from USB or virtual serial port, the prefix or suffix can be added to the barcode data, and a variety of terminators can be selected. Rich functions can fully meet the special requirements of various customers. It can be widely used in express logistics, retail, e-commerce office automation and other fields

● Can be customized according to customer demand.

Technical parameters

CPU : ARM 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 2500 pixel

Imaging Sensor : CCD

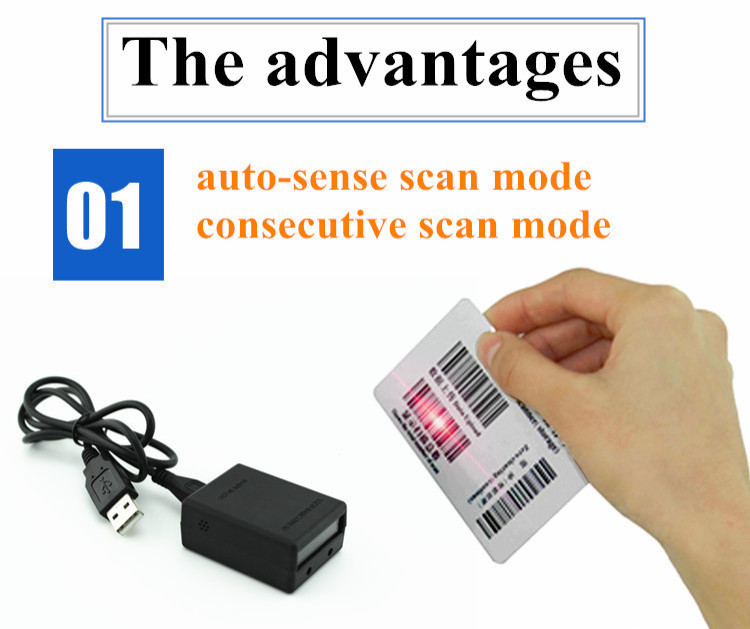

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Decoding Speed : 300times/second

Interface : Micro USB,TTL,RS232,USB

Resolution : 4mil

Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)

Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°

Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
