    2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment

    Ask Lasest Price
    Brand Name : YHDAA
    Model Number : YHD-M100D
    Certification : CE,FCC,ROHS,IP54,FDA,SGS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment

    Low Cost 2D 1D CMOS Sensor Outdoor Kiosk Payment QR Code Scanner Module YHD-1100D


    Features

    Mini Size: 7 *5 *2.3cm/ 2.7 *1.9 *0.9in.

    Powerful decoding capacity for most 1D and 2D codes.

    Plug and play, driver-free, convenient for usage.

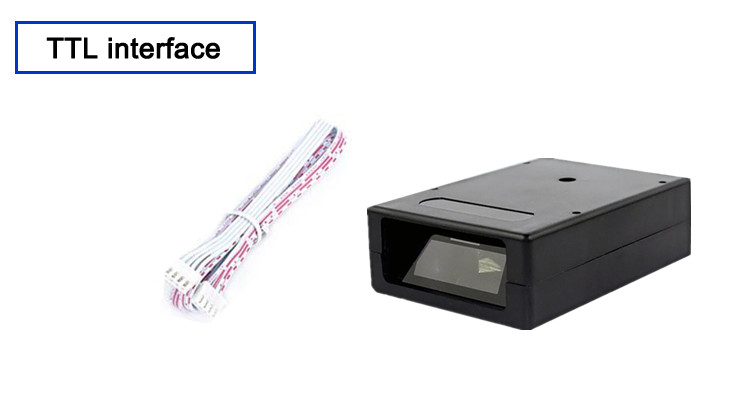

    RS232,USB,TTL,Micro USB Interface Optional

    Supports Continuous/Auto-Induction , 2modes for option.

    Can scan the phone, computer and other electronic screen.

    Super scanning and decoding ability, can read incomplete and fuzzy codes.

    M100D Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

    Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.

    Can be customized according to customer demand.


    Technical parameters

    Imaging Sensor : CMOS

    Optical Source : 620nm Visible red light diode

    Trigger Mode : Continuous,Auto-Induction

    Indication : Buzzer & LED

    Resolution Ratio : 640×480 CMOS

    Decoding Speed : 500times/second

    Interface : RS232,USB,TTL,Micro USB

    Resolution : 4mil

    Dimensions(scanner) : 70×50×23 mm(Length x Width x Height)

    Weight(without cable) : 47g

    Minimum Contrast : ≥ 25%

    Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,

    Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

    2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc

    Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),20-150mm PDF417(6.8MIL),15-250mm QR Code(20MIL)

    Working Voltage : DC3.3V

    Storage Temperature : -40°C ~ 70°C / -40°to 158°F

    Working Temperature : -20°C ~ 60°C / -4°to 140°F

    Relative Humidity : 0%-95%Relative humidity, no condensation state

    Drop test : 1.5m fall to concrete




    Packaging Details

    Standard List: Scanner Module*1, Cable *1, Manual *1, Box *1.

    Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

    Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

    Carton : 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

    Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
