2D CMOS Imaging Embedded Barcode Scanner Module,Small High Performance PDF417 Bacode Scan Engine
1D 2D Codes on screen and paper; Ability to scan blurred, broken, irregular and colorful barcodes; It is long decoding range especially for 1D bar codes.Support secondary development, the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
Features
● Plug and play, driver-free, convenient for usage.
● Support to read 1D 2D Codes on screen and paper.

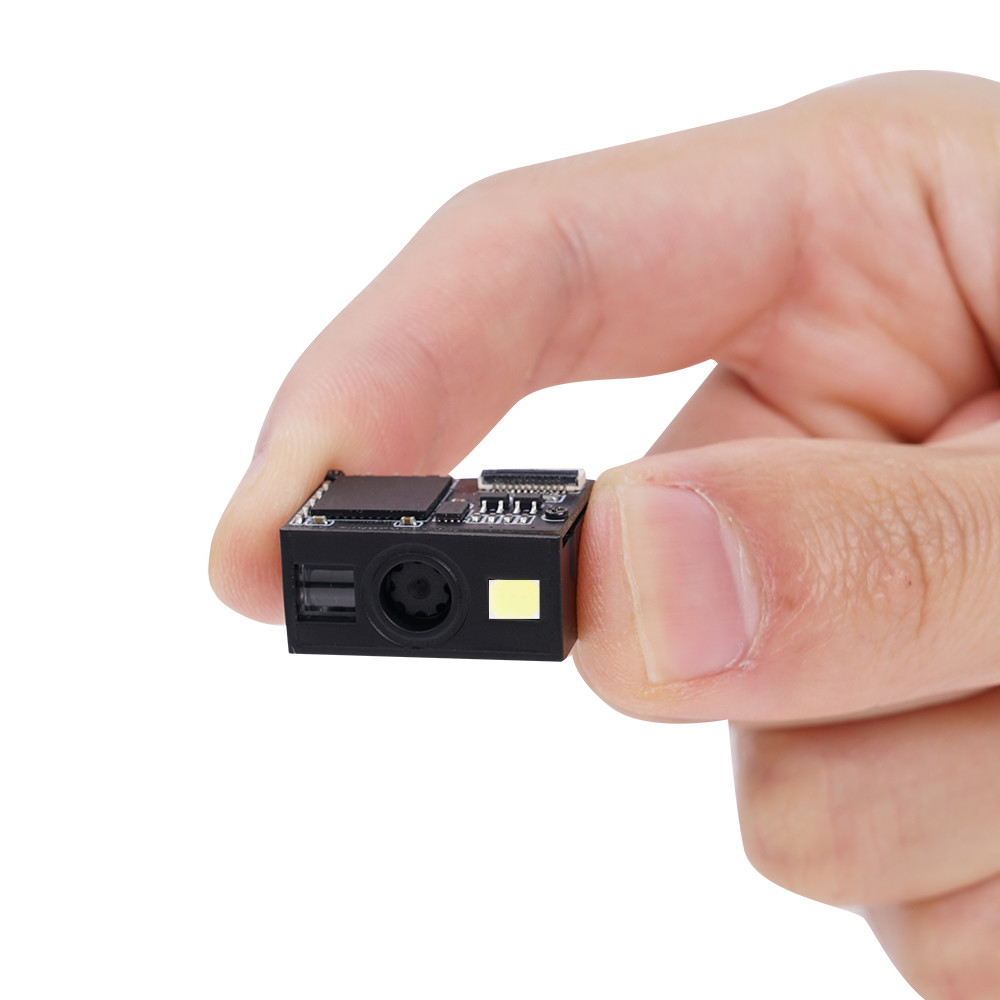

● Extremely small and easily fixed into miniature equipment.
● 3 kinds of output interfaces, TTLRS232USB. Meet more interface requirements.
● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, access control machine,self-service store, check-in machine,factory assembly line,logistics, hospital,PDA,etc.
Technical parameters
Imaging Sensor : CMOS
Optical Source (Aim) red LED, (Illumination)white LED
Trigger Mode : Auto-sensing scanning
Indication : Buzzer & LED
Resolution : Ratio 640×480 CMOS
Decoding Speed : 500times/second
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Minimum Contrast : ≥20%

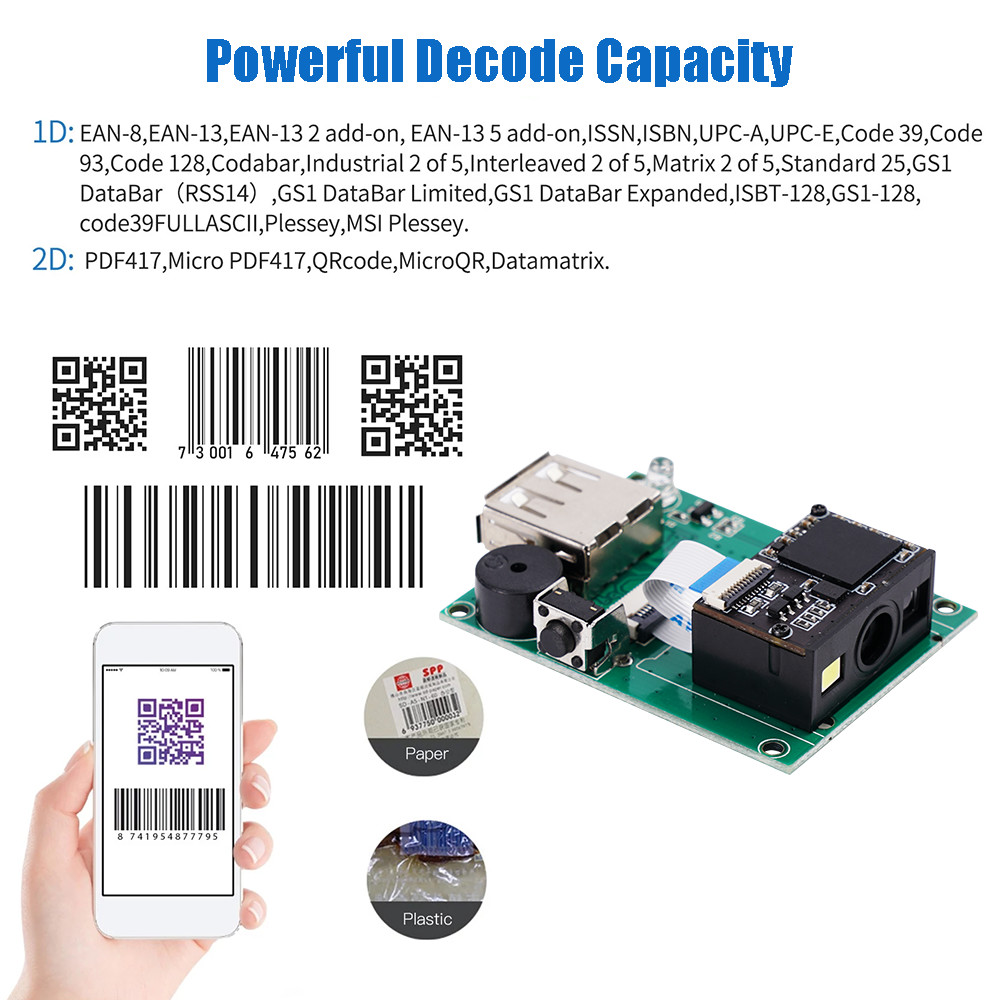

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,
Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D: PDF417, QR , DataMatrix
Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°
Field of View : 36°(H) X27°(V)
Current DC : 3.3V Working :150mA Stand-by : 70mA
Working Voltage : DC5/3.3 V ± 10%
Storage Temperature : -40°C ~ 80°C / -40°to 176°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Relative Humidity : 5 ~ 95%
Weight : 2g (scanner without cable and development board),10g(scanner with cable and with development board)
Dimensions : 21.5*14.5*10 mm (scanner without development board),44*33*11 mm (scanner with development board)
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
|
|
