YHDAA 2D Wireless Barcode Scanner,Supports Screen Scan Handheld Automatic QR Code Scanner YHD-1200DW

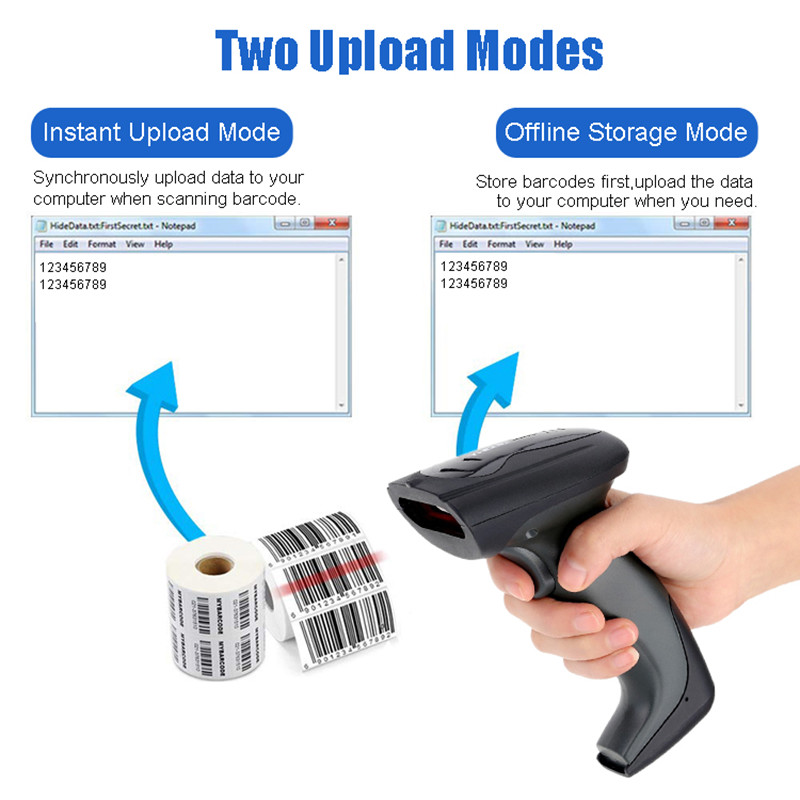

YHD-1200DW barcode reader support cordless scanning with a 2.4G mini USB receiver, which allow you to scan bar code in every corner of your library and warehouse. Also, it can scan barcodes with a USB cable which will charge the scanner gun at the same time. Just plug the USB

receiver or cable and scan, don't need driver.

Features

● Adopts 2.4G wireless&Wired Two mode communication technology.

● Large capacity battery,2600MAH Li-ion battery.

● Plug and play, not need install any procedure.

● Supports Handheld/Continuous/Auto-Induction , 3modes for option.

● Fast and accurate in reading 1D and 2D codes.

● Can scan the phone, computer and other electronic screen.

● The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

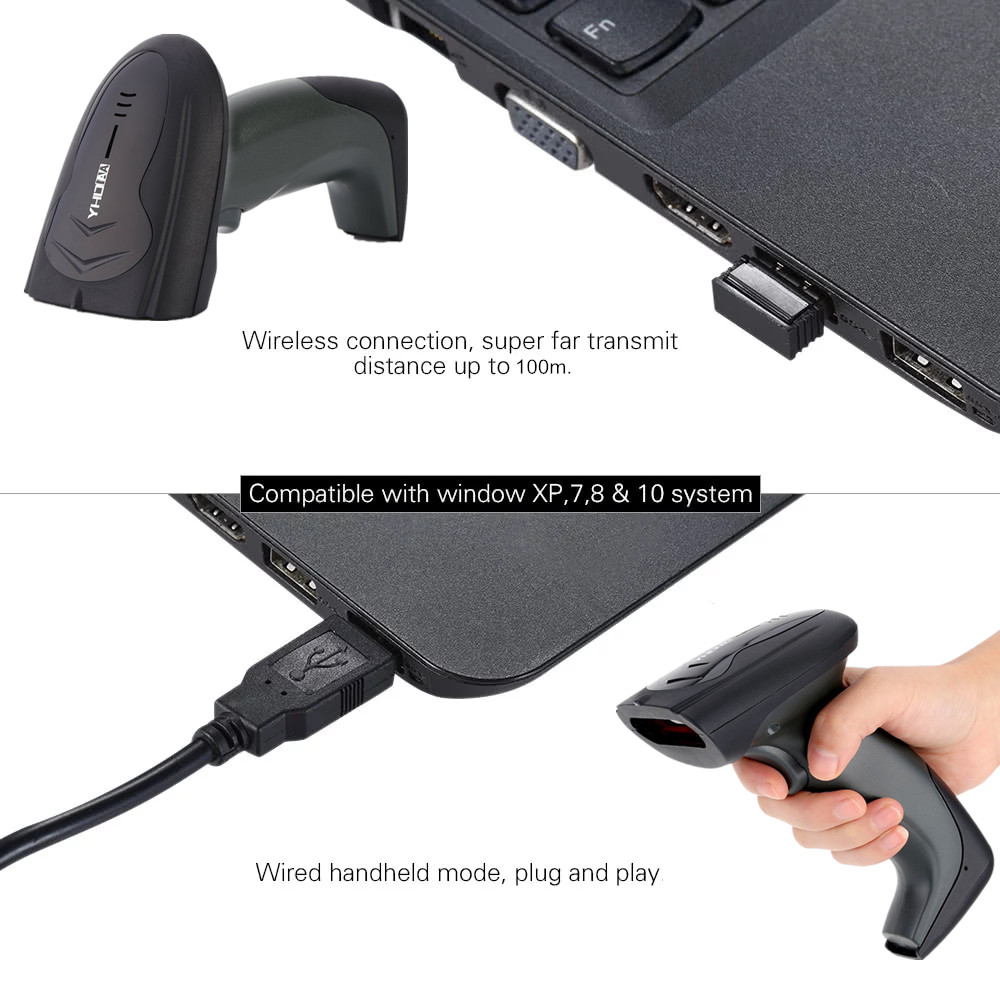

Transmission mode : 2.4G wireless/wired

Storage:100,000 barcodes

Distance : 100m/1.5m

CPU:ARM 32-bit Cortex

Sensor : 640*480 CMOS

Interface:USB,USB-COM

Resolution : 4mil

Light aimer : 617nm LED

Battery : 3.7V-2600mAh

Indication : Buzzer & LED

Decoding speed : 500scans/sec

Illumination: 6500K LEDs

Button life : 8000,000 times

Hull material: ABS+Rubber

Depth of Field : 13mil-EAN13 60-290mm,4mil-code39 30-150mm,15mil-QR 20-300mm,15mil-PDF417 40-300mm

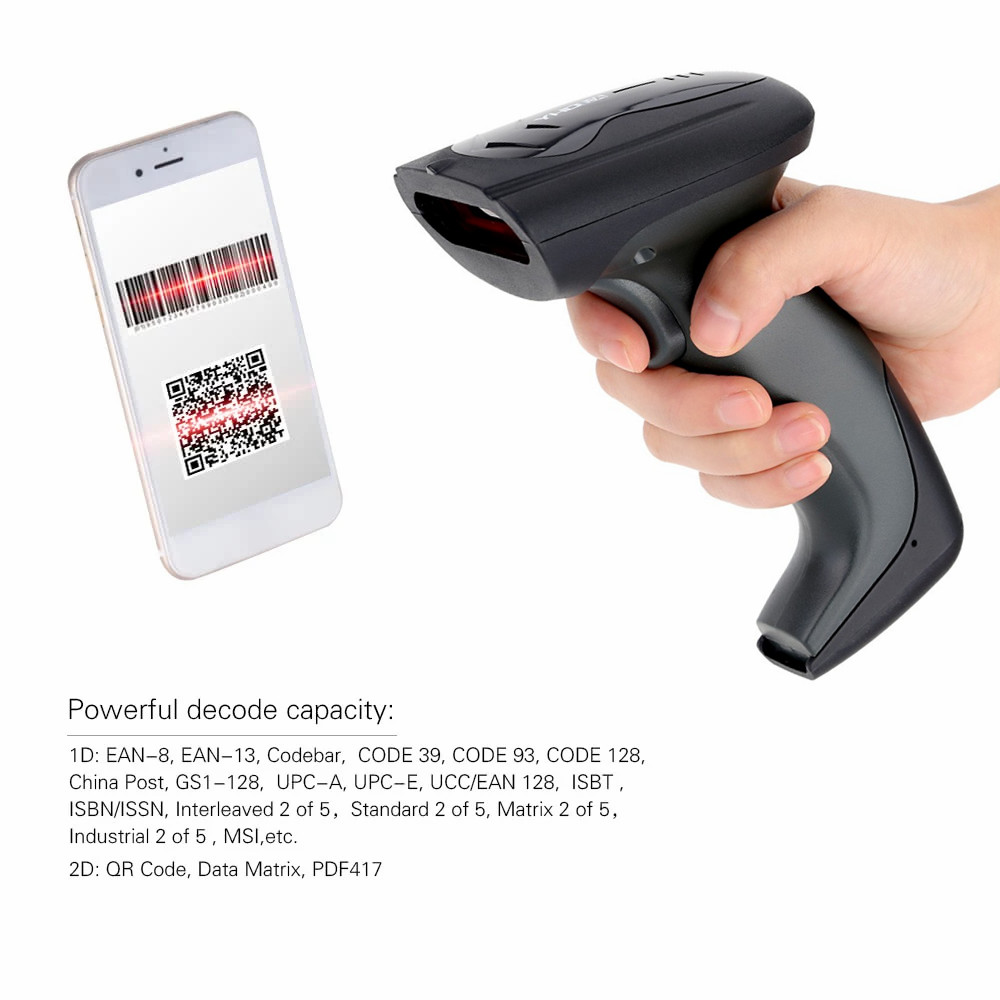

Decode Capability:

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,

Coda bar,MSI Plessey,RSS,etc.

2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Temperature storage : -40°C ~ 60°C Temperature working: -20℃ to 60℃

Working time : 3 to 10 days

Relative Humidity : 0 ~ 95%

Anti inference : 0-100000Lux Max

Printing Contract : ≥25%

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Drop test : 3m

Packaging Details

Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1

Single Package Size: 167*80*100mm

Single Gross Weight: 0.35kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:18Kg, N.W:16Kg
