Technical parameters

Type : 2.4G/Wired

Distance : 100m/1.8m

Memory : 100,000 barcodes

Working current : 5V±5%x140mA

Standby current : 30mA

Battery capacity : 2000 mAh

Operating Humidity : : 5 - 95% (non-condensing)

Working time : 3 to 10 days Standby time : 60 days

Light aimer : 624nm LED Illumination : 6500K LEDs

Sensor : 640*480 CMOS Indication : Buzzer & LED

Trigger Mode : Button, Continuous, Auto-Induction

250Lux Depth of Field : 13mil-EAN13 50-250mm Resolution : 4mil

CPU : ARM 32-bit Cortex

Printing Contract : >25%

Decoding speed : 500/sec,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Anti-interference : 0-100000Lux Max

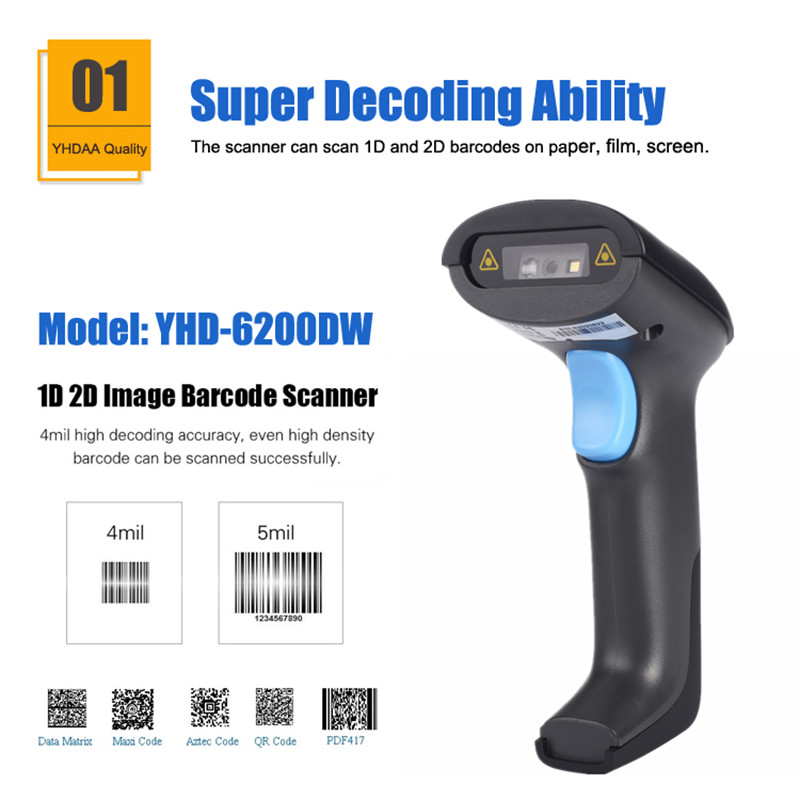

Decode Capability:

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,etc.

2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.

Temperature : -20℃-50℃(Working) -40℃-70℃(Storage)

Drop test : 2.0m Interface:USB

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1

Single Package Size: 167*80*100mm

Single Gross Weight: 0.25kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:14Kg, N.W:12.5Kg

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
