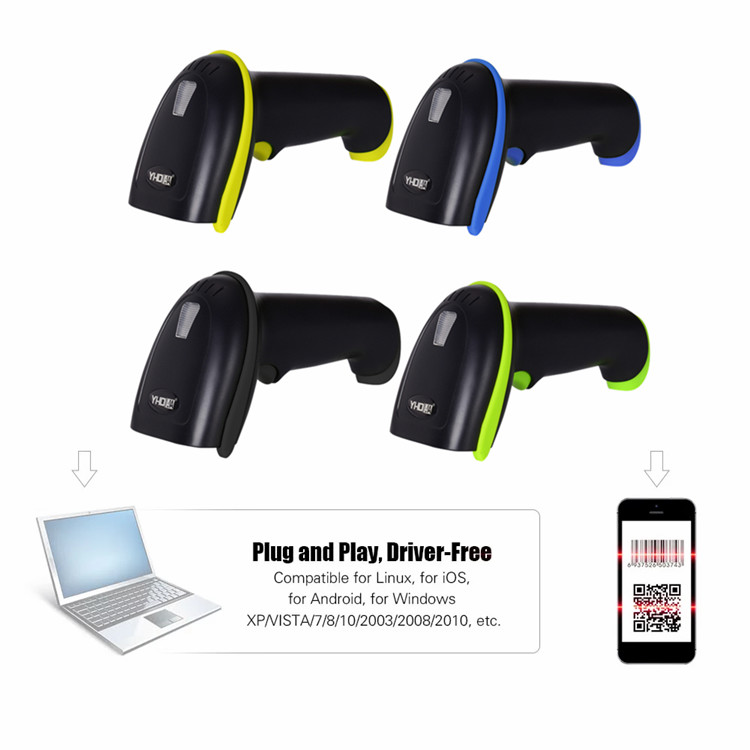

2D Wireless Barcode Scanner QR Code Reader PDF417 Data Matrix In Stock YHD-5700DW

Features

● Color:Yellow/ Black/ Green/Blue Optional.

● Excellent decoding ability, high speed and low error rate.

● Built-in 2600mAh battery, super-long standby time.

● Shockproof design, ensures for long service life.

● Supports Handheld/Continuous/Auto-Induction , 3modes for option.

● 2.4G wireless and USB wired connecting mode, plug and play, no need to install driver.

● Support more 16 kinds keyboard languages, can be used in many countries.

● Adopts 2.4G wireless communication technology, 60m indoors and 100m in open space.

● It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and computer screen, and it also can read 2D barcodes.

Technical parameters

Transmission mode : 2.4G wireless/wired Storage:100,000 barcodes

Distance : 100m/1.5m CPU:ARM 32-bit Cortex

Sensor : 640*480 CMOS Interface:USB,USB-COM

Resolution : 4mil Light aimer: 617nm LED

Battery : 3.7V-2600mAh

Indication : Buzzer & LED

Decoding speed : 500scans/sec

Illumination: 6500K LEDs

Button life : 8000,000 times

Printing contract : ≥25%

250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm

Decode Capability:

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,

Coda bar,MSI Plessey,RSS,etc.

2D : QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Working current : 3.3Vx200mA Standby current :18uA-5mA

Working time : 7 to 10 days

Charging power:5V-400mA

Anti inference : 0-100000Lux Max

Relative Humidity : 0 ~ 95%

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Drop test : 2m

Packaging Details

Standard List: Scanner*1, Cable *1, Receiver*1, Manual *1, Box *1

Single Package Size: 167*80*100mm

Single Gross Weight: 0.28kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:14Kg, N.W:11Kg

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
