Desktop Barcode Scanner 1d 2d Hands Free Bar Code Reader Scanners YHD-9800D

Features

● CMOS image sensor.

● No driver, plug and play.

● Wide angle lens design, scans a large area.

● Effectively scans barcodes in sensitive lighting conditions, including through,glass/plastic, in bright sunlight, in dark environments, or on curved/reflective surfaces.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

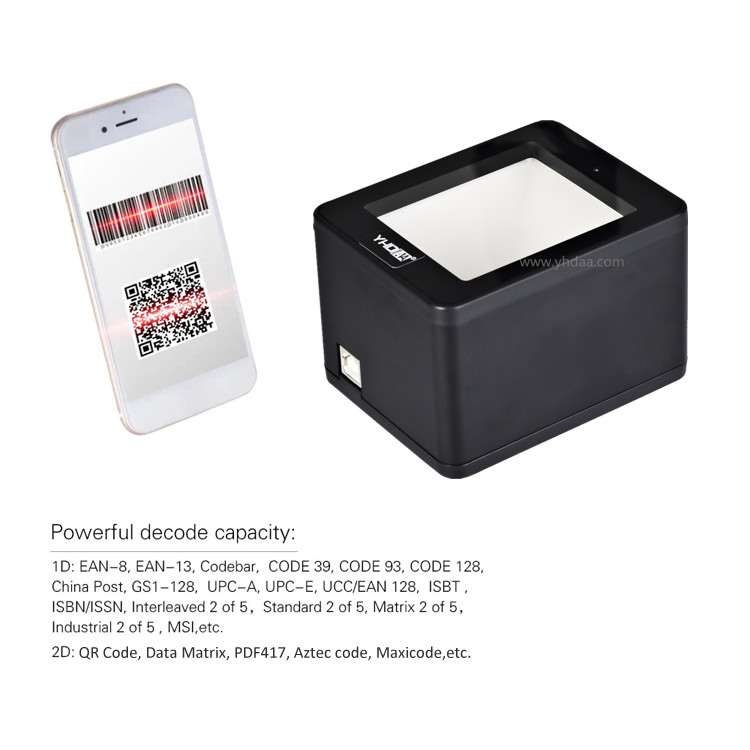

● Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

● Application fields: Electronic tickets/coupons, mobile marketing and office automation, kiosks,medical equipment,the series fixed mount barcode scanner is able to read barcodes from paper and mobile phones.

● Can be customized according to customer demand.

Technical parameters

Imaging Sensor : CMOS

Optical Source : 620nm Visible red light diode

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Resolution Ratio : 640*480

Interface : RS232,USB

Decoding Speed : 500times/second

Resolution : 4mil

Size(Length x Width x Height) : 95*75*63 mm

Minimum Contrast : ≥ 25%

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417,etc.

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),20-150mm PDF417(6.8MIL),15-250mm QR Code(20MIL)

Scan Angle Roll 55°, Pitch± 25°, Skew ±75°

Working Voltage : 5V

Current Max. : 212mA Working : 156mA～212mA Stand-by : 156mA

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0 ~ 95%

Drop test : 1.5m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.

Single Package Size: 167*80*100mm

Single Gross Weight: 0.25kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:13Kg, N.W:11Kg

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
