Technical parameters

Optical resolution : 640*480 ,120 fps

Lighting source : red LED supplement

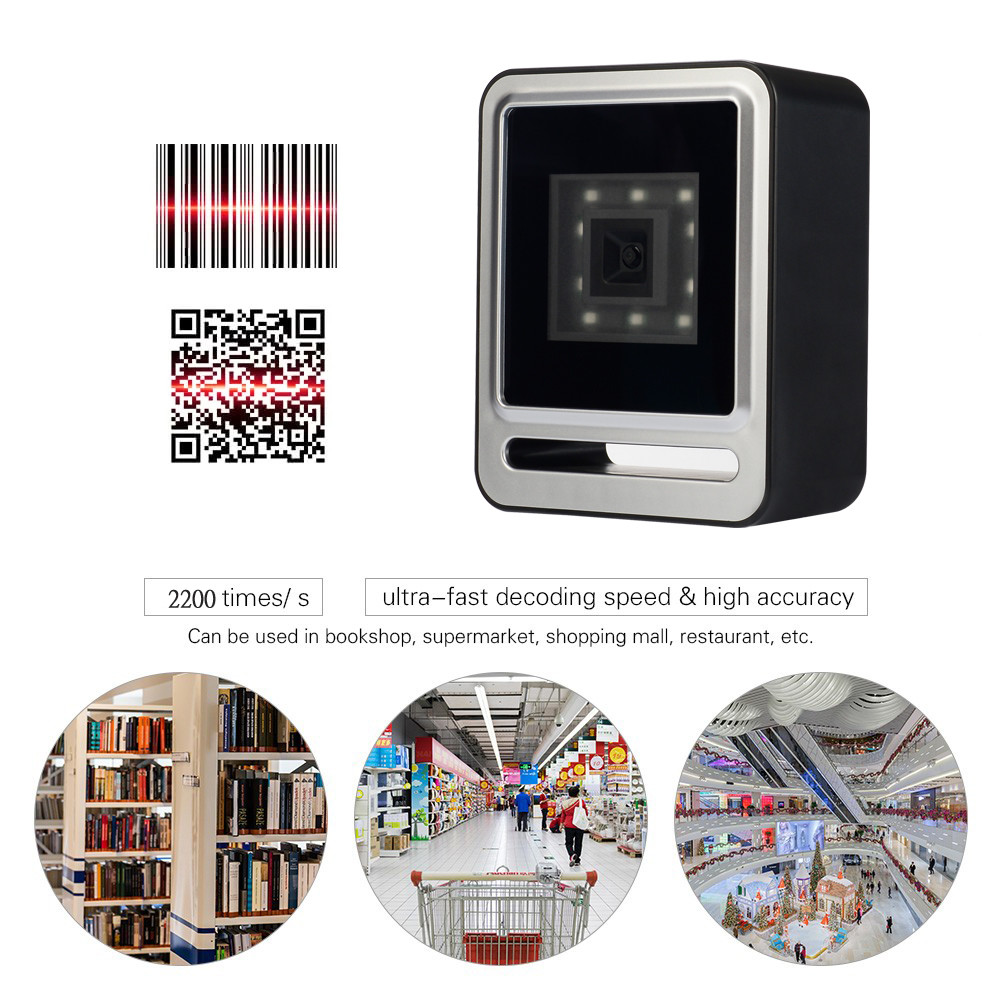

Scanning speed : 2200 times/s

Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees

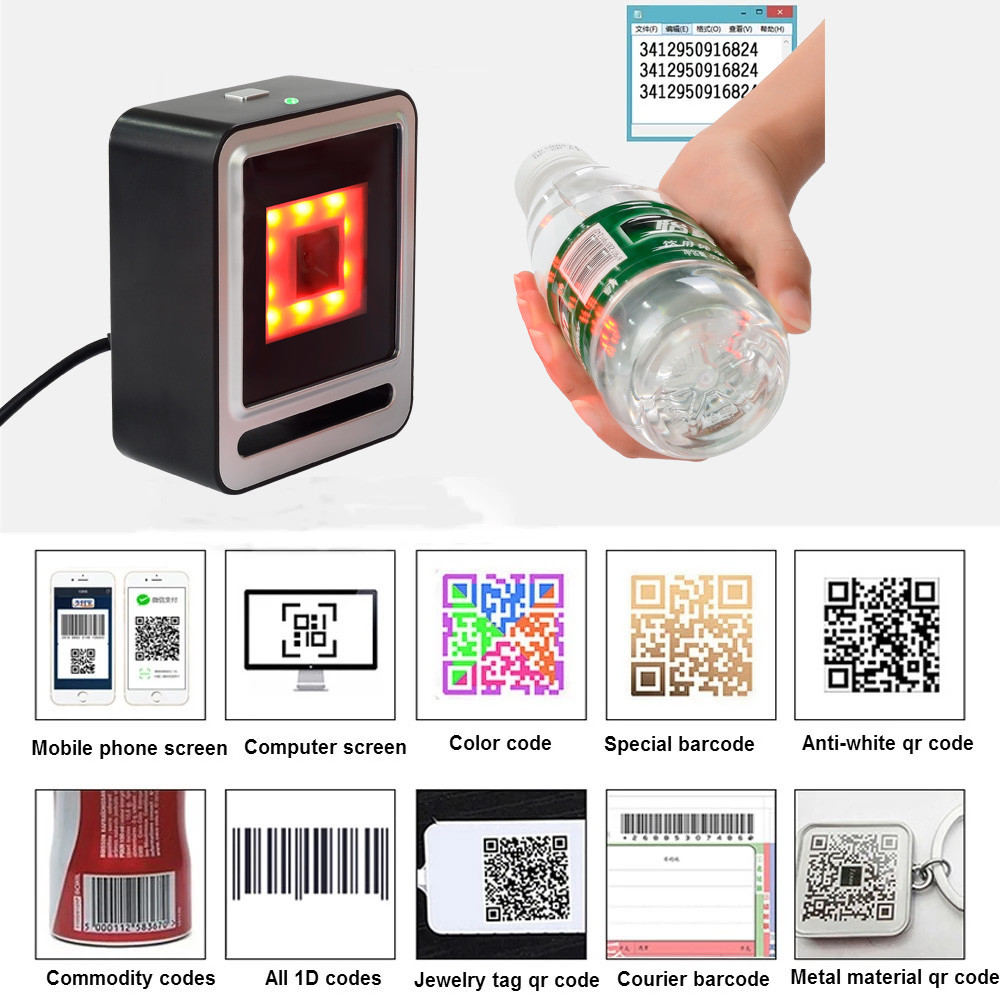

Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.

Printing contrast : 20%

Resolution : 4mil

Error rate : ≤1/2,000,000

Interface type : USB:HID Keyboard(default mode), USB virtual serial port

IP level : up to IP54 standard

Trigger Mode : Handheld,Continuous,Auto-Induction

Prompt mode : Buzzer, LED

Decoding Capability : 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E,EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5, matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Depth of field : 13mil UPC (20-120mm),5mil Code128 (20-60mm),10mil Code128 (20-100mm),20mil QR (20-140mm)

Electric voltage : 5V DC

Working current : 390mA(Max.),220mA(Typical)

Optical safety certification : ICE42471,IEC60950

Electromagnetic compatibility : EN55022,EN55024

Size : 110mm*53mm*120mm

Cable length : 2m

Weight : 300g

Working temperature : -20℃～60℃

Storage temperature : -40℃～85℃

Working humidity : 5%～95%

Drop test : 1.5m

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 185*120*86mm

Single Gross Weight: 0.45kg

30pcs/CTN Carton Size: 438*380*380mm

30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
