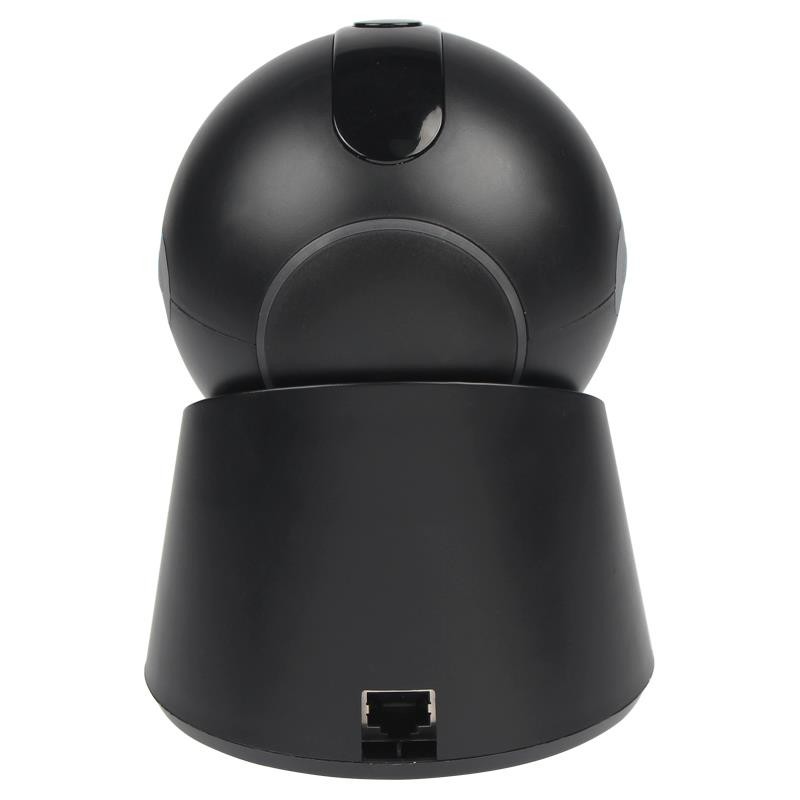

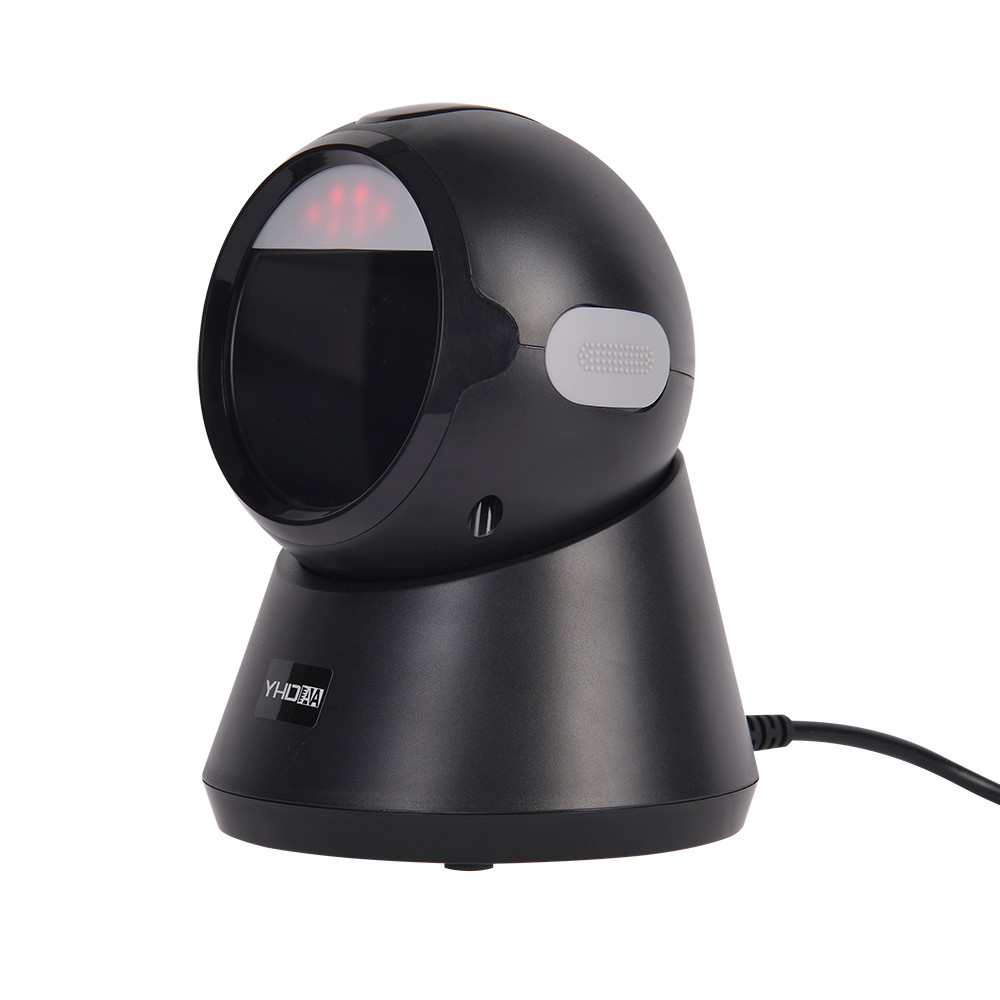

2D Omnidirectional Tabletop Barcode Reader CMOS Qr Code Scanner For Supermarket YHD-9100D
YHD-9100D handsfree barcode scanner you can directly place onto your desk or table, no need to pick up the scanner when scanning, especially for the cashier to release their hands so that they can grab heavy and big goods, improving working efficiency, save your time, it is so easy to use
Features
● YHD-9100D 2D Desktop Barcode Scanner,Desktop mounted, easy to use.
● 32Bit CPU, Super decoding ability, support multiple languages.
● Wired scanning platform free your hand and improve the working efficiency.
● Compatible System - Windows, Mac OS, POS Cash Register, Linux.
● Plug and play, no need for any driver or software. Easy installation with USB cable.
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
● Desktop Hand-Free Design, auto sense ,when the scanner reaches the barcode ,it will
automatically decoding the barcode.
●Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Optical resolution : 640*480
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Error rate : ≤1/2,000,000
Interface type : USB:HID Keyboard(default mode), USB virtual serial port
IP level : up to IP5X standard
Prompt mode : buzzer sound prompt and green light prompt
Decoding Capability 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E, EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5,matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D:QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Electric voltage : 5V DC
Working current : 390mA(Max.),220mA(Typical)
Optical safety certification : ICE42471,IEC60950
Electromagnetic compatibility : EN55022,EN55024
Size : 110mm*150mm*110mm
Cable length : 2m
Weight : 450g
Working temperature : -20℃～60℃
Storage temperature : -20℃～70℃
Working humidity : 0%～80%
Drop test : 2m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*125*130mm
Single Gross Weight: 0.53kg
30pcs/CTN Carton Size: 390*390*675mm
30pcs/CTN Carton G.W.:17Kg, N.W:15Kg
|
|
