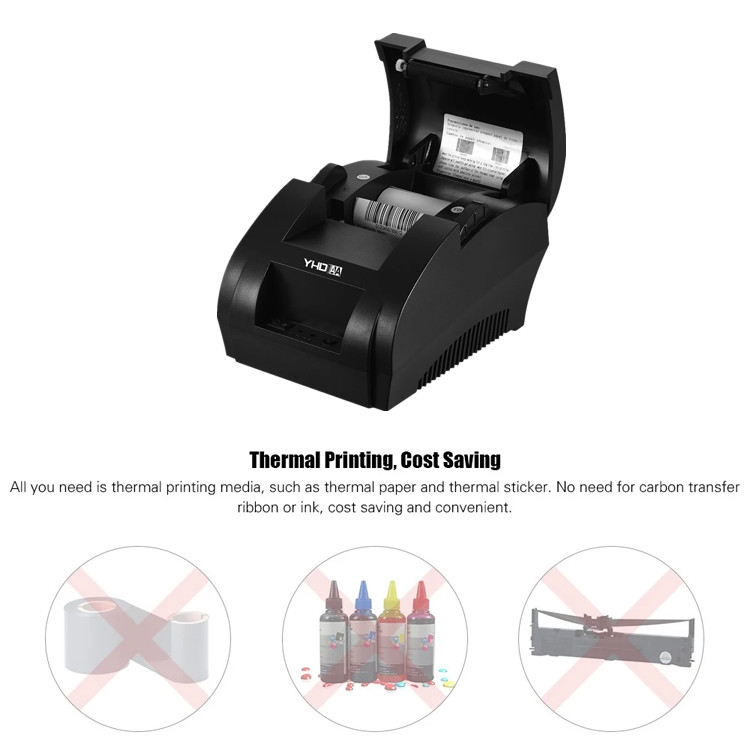

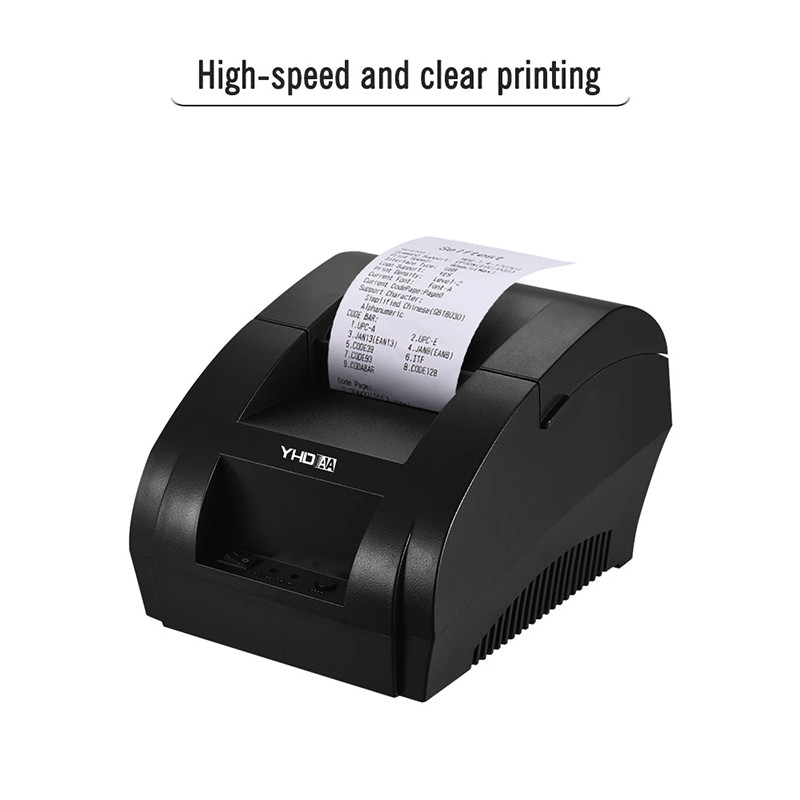

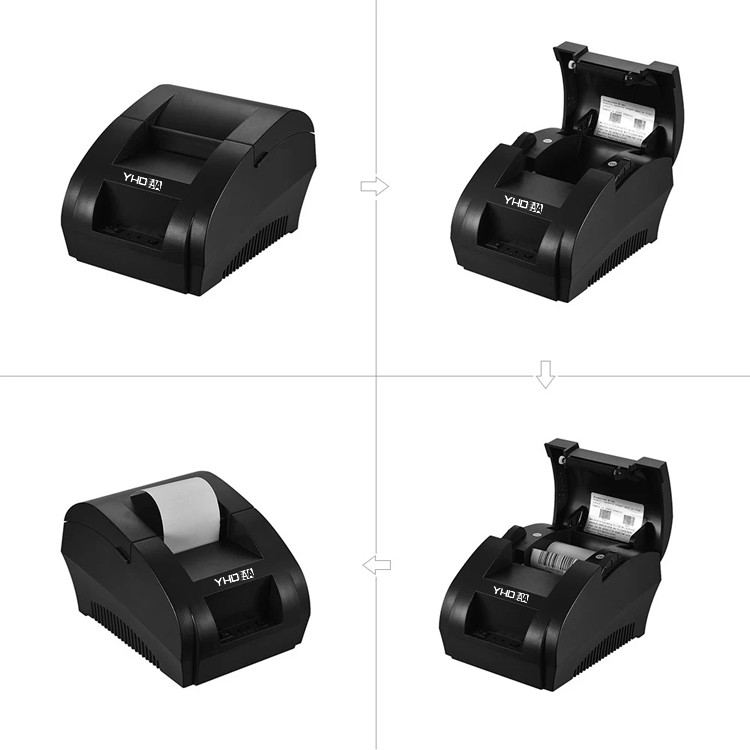

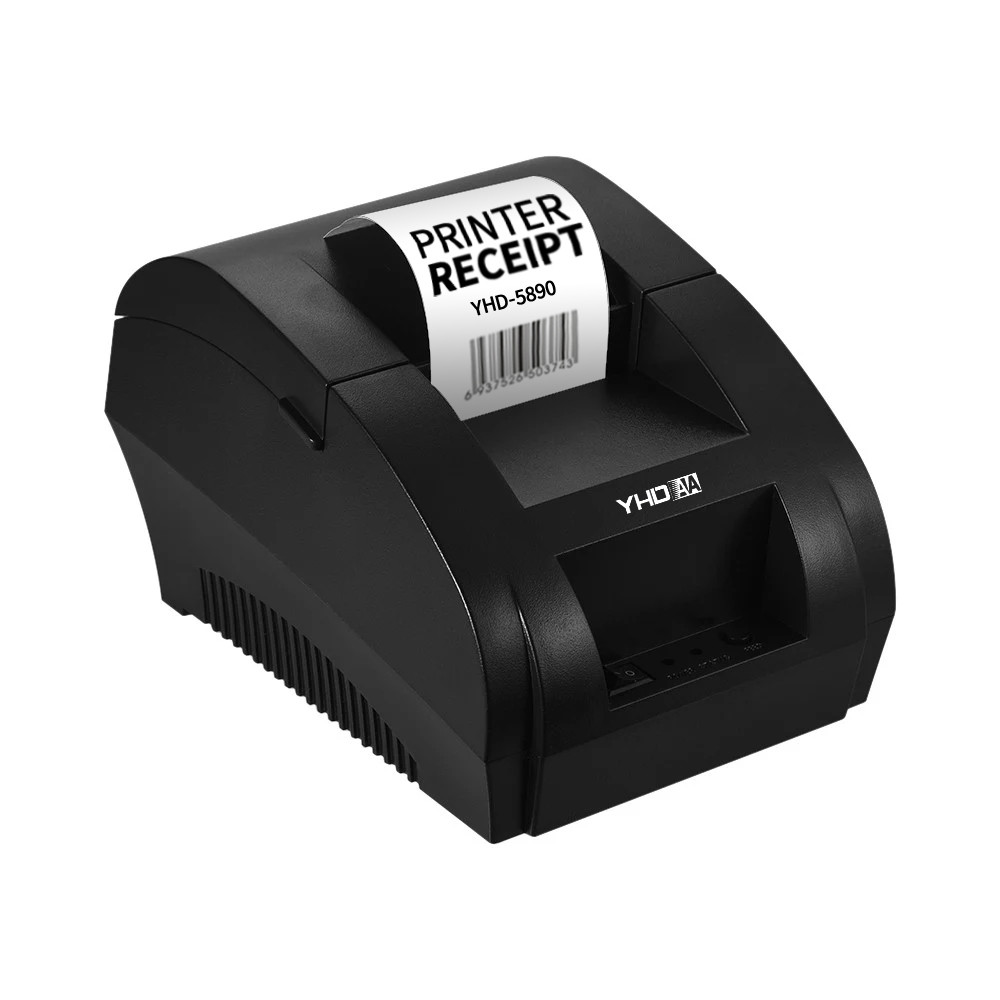

58mm Thermal POS Printer,Support to ESC/POS/Window and Linux System,Small Printer Support Cash Drawer

The USB thermal receipt printer has a high-speed printing speed at 90mm/s, compatible with ESC/POS printing commands, and supports bitmap and download graphics printing. The POS receipt printer has a built-in data buffer, which can receive print data during printing. Support cash box drive, it is an ideal choice for receipt printing in large shopping malls, supermarkets, retail, hotels, canteens, restaurants, etc.

Features

● Fashionable mode, Contracted style.

● light in weight and smart in shape.

● High-quality printing and low cost.

● Low noise and high-speed printing.

● Support cash drawer driver.

● Optional interface: USB/USB+BT.

● Compatible with EPSON ESC/POS commands.

● Suitable for all types of commercial detail POS systems.

● Support Driver: Win XP,Vista,7,8,10/linux/ Android.

● Applications: Logistics, traffic police, postal services, urban management, tobacco, meter reading, supermarkets, clothing and other industries.

Technical parameters

Interfaces : USB (Optional: USB+Bluetooth)

Print Comand : ESC/POS

Print Method : Thermal Line Printing

Pirnt Speed : 90mm/s

Resolution : 203DPI (8dot/mm)

No. of Total Dots : 384 dots/Line

Print Width : 48mm

Character Size : 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H)

Print Font : 12 x 24; 24x 24

Character Set : Alphanumeric /Chinese Kanji

Data Buffer : UP to 20K bytes

Compatible OS : Window Systems; Linux Operate Systems

Color : Black

Paper Type : Roll Paper

Paper Width : 58.0±0.1mm

Roll Diameter φ≤50mm

Paper Thickness : 0.06-0.08mm

Adapter Voltage : DC 9V/3A

Cash Drawer Control : DC 12V/1A

Print Head : Reliability

Print Reliability : 50km

Temperature Working : 0 to 45 Degrees

Humidity Working : 10%-80%

Warranty : 24months at least

Packaging Details

Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Box *1.

Single Package Size: 197*155*123mm

Single Gross Weight: 0.80KG

18pcs/CTN Carton Size: 48.5*41.5*39.1cm Carton G.W.:16KG
