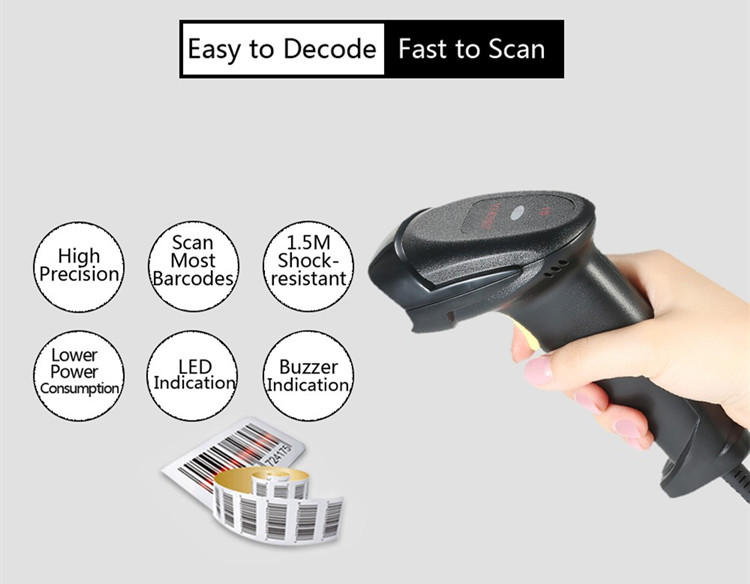

1D Laser Cordless Barcode Scanner for Small Businesses Supermarket Retail Store Library Logistic Warehouse 8200LW

YHD-8200LW Handheld Laser barcode scanner can be used to scan and decode linear one-dimensional (1D) colored barcodes.it with mini USB receiver, plug and play. no software or app installation required,compatible with Windows, Mac, and Linux; works with Quickbook, Word, Excel, Novell, and all common software

Features

● Supports Handheld/Continuous Mode.

● Excellent scanning performance, high-speed and accurate.

● Each scanner can store 2000 bar-codes and easily transferred to computer.

● Dopt a highly integrated design, high quality shell, have IP54 protection grade.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Processor : 32-bit MCU

Light Source Type : Visible laser 650mm.

Safely level : National laser safety standard class 1

Transmission : 2.4G Wireless and USB Wired

Distance : ≤100m

Resolution : 4mil

Storage : 2000 barcodes

Battery : 800mah

Working time : 7 to 10 days

Scanning width : 5cm-30cm

Promotion pattern : Buzzer and LED indicator

Scan speed : 300 scan/sec

Trigger mode : Handheld,Continuous

Scan angles : Roll35°; Pitch 75°; Yaw 65°

Hull material : ABS+PC

Printing Contrast Ratio : ≥ 30％

Decoding capacity : Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code,EAN 128Full ASCII,Codabar,Code93,Discrete2of5,EAN,UPC,ISSN,ISBN,Code25,Codabar,Inteleaved2/5,Interleaved2of5 and China postal service code,etc.

Power supply mode : DC 5V

Working current : 50ma(Operation); 30ma(standby); 100ma(max)

Operating Temperature : 0°C to 50°C / 32 to 122°F

Storage Temperature : -20°C to 70°C / -4 to 158°F

Operating humidity : 20-95%(no condensation)

Antistatic ability : 15KV Air discharge

Drop test : 1.5m

Certificate : CE,FCC,RoHS,IP54

Packaging Details

Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1.

Single Package Size: 167*80*100mm

Single Gross Weight: 0.24kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:13Kg, N.W:12Kg

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
