| Brand Name : | YHDAA |
| Model Number : | YHD-1100D |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | T/T, D/P, D/A, Western Union, L/C, MoneyGram |

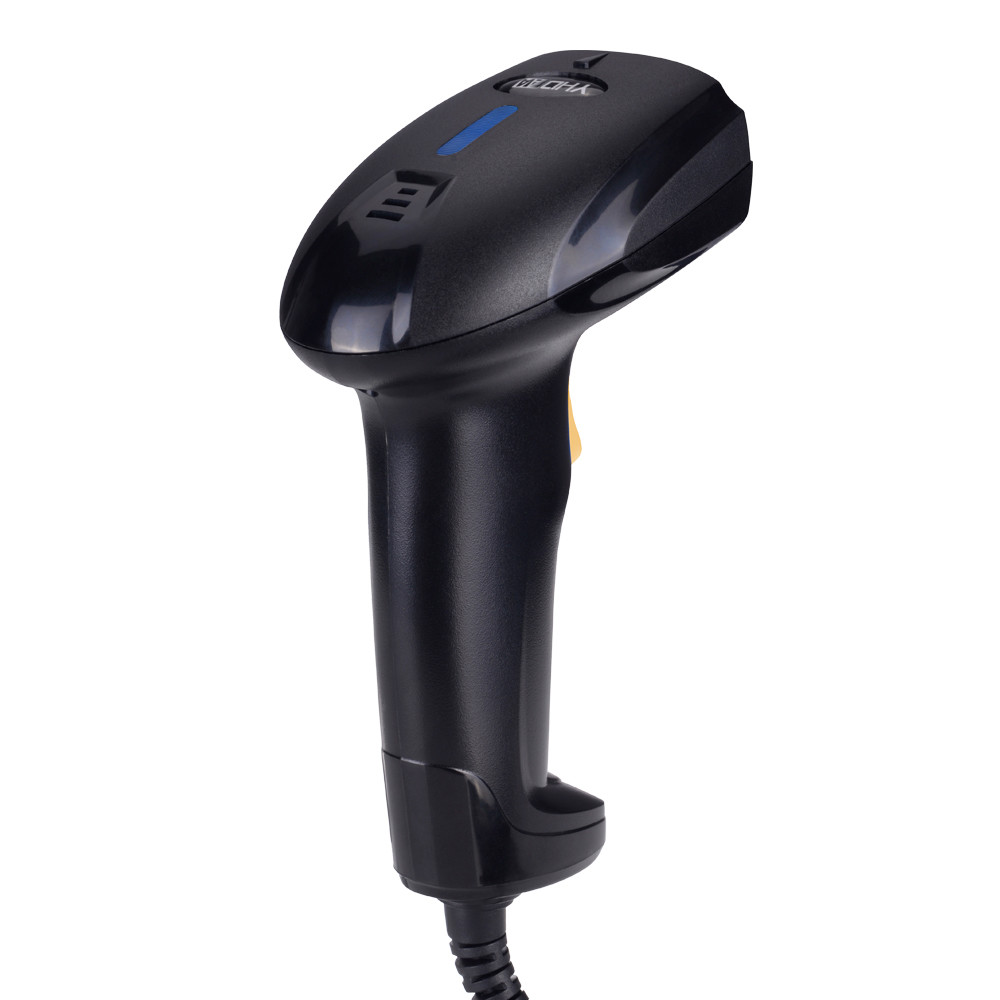

1D 2D Hands Free Barcode Scanner Desktop Image Barcode Reader For Inventary, Store, Supermarket,Mobile Payment
YHD-1100D Powerful decode ability, fast scanning 1D/2D barcodes.Handheld barcode scanner can be used in supermarkets, convenience stores, warehouses, libraries, bookstores, drugstores, and retail shops for file management, inventory tracking, POS(point of sale), etc.
Features
● No driver needed, plug and play.
● Support reading bar codes from screen.
● Applying CMOS image technology, easy to scan.
● Powerful decode ability, fast scanning 1D/2D barcodes.
● Support the multinational language keyboard.
● Supports Handheld / Continuous / Auto-Induction , 3modes for option.
● Dopt a highly integrated design, high quality shell, have IP45 protection grade.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract : ≥25%
Material : ABS+PC
Indication : Buzzer & LED
Interface : USB / RS232 / TTL / KBW
Decoding speed : 500scans/sec
Anti inference : 0-100000Lux Max
Button life : 5000,000 times Voltage:5V DC
Depth of Field : 13mil-EAN13 40-250mm,4mil-code39 50-90mm,20mil-QR 40-290mm,10mil-PDF417 40-260mm
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°, inclination± 65°,declination ± 60°
Current : 80mA(working current), 30mA(standby current )
Temperature : -20℃-50℃(Working) -40℃-60℃(Storage)
Drop test : 2m
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
* Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
* Single Package Size: 185*120*86mm
* Single Gross Weight: 0.45kg
* 30pcs/CTN Carton Size: 438*380*380mm
* 30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
|
|
