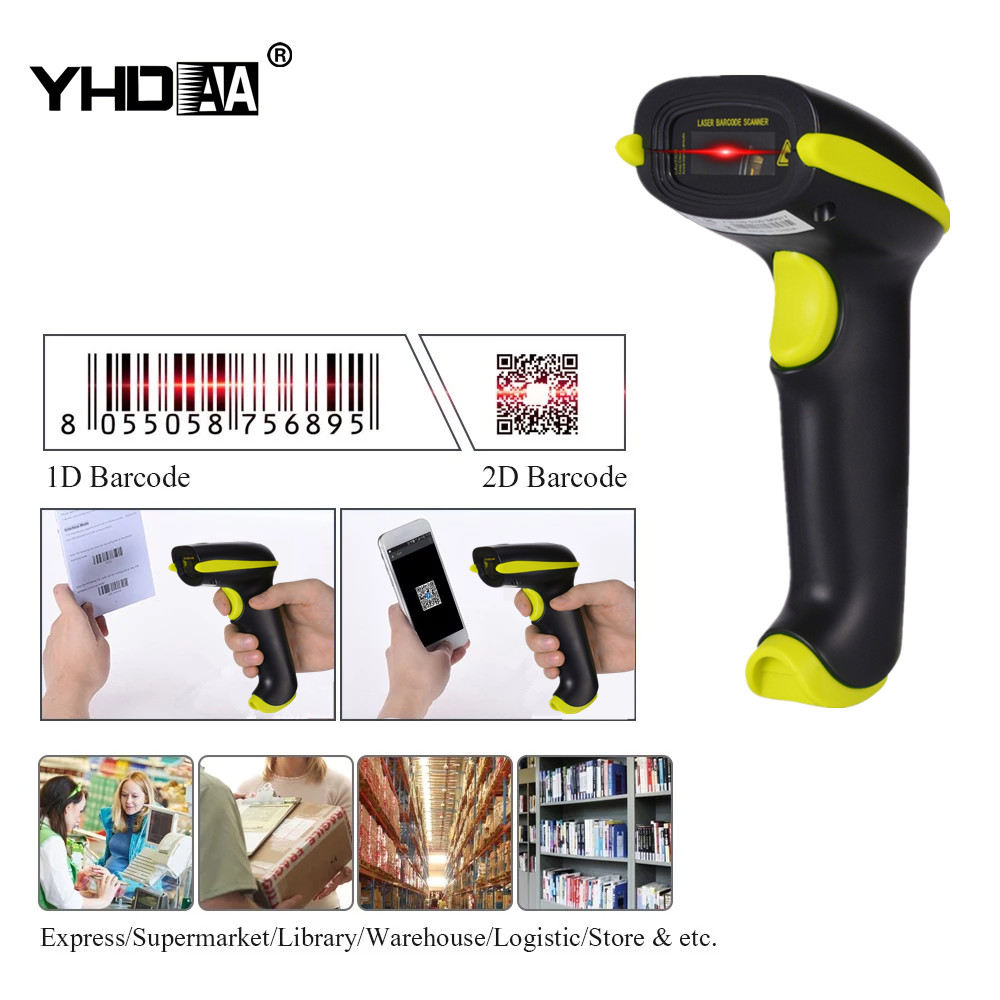

Automatic Sensing Scanning USB Barcode Scanner 2D,Work with Windows, Android, iOS, Tablets or Computers
High speed, omnidirectional reading of 1D, 2D, Postal bar codes and reverse printed bar code from paper surface or mobile display, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, Intelligent Mail Barcode(IMB) on business card, tickets, driver license, machines, courier service bill
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale, cheap price.
● Plug and play, work with all POS system.
● Strong decoding ability, can scan 1D/2D barcodes on paper, screen.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Support commercial barcode ,pharmacy barcode ,logistical barcode ,post barcode ,folding barcode ,small barcode ,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor :CMOS 640*480
Resolution : 4mil Light aimer :624nm LED
Printing Contract : ≥25%
Material:ABS+PC
Indication : Buzzer & LED
Drop test : 2m
Decoding speed : 500scans/sec
Anti inference:0-100000Lux Max
Button life : 8000,000 times
Voltage : 5V DC
250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Temperature : -20℃-50℃(Working) -40℃-70℃(Storage)
Interface : TTL,RS232,KBW,USB
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1,Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:11Kg
|
|
