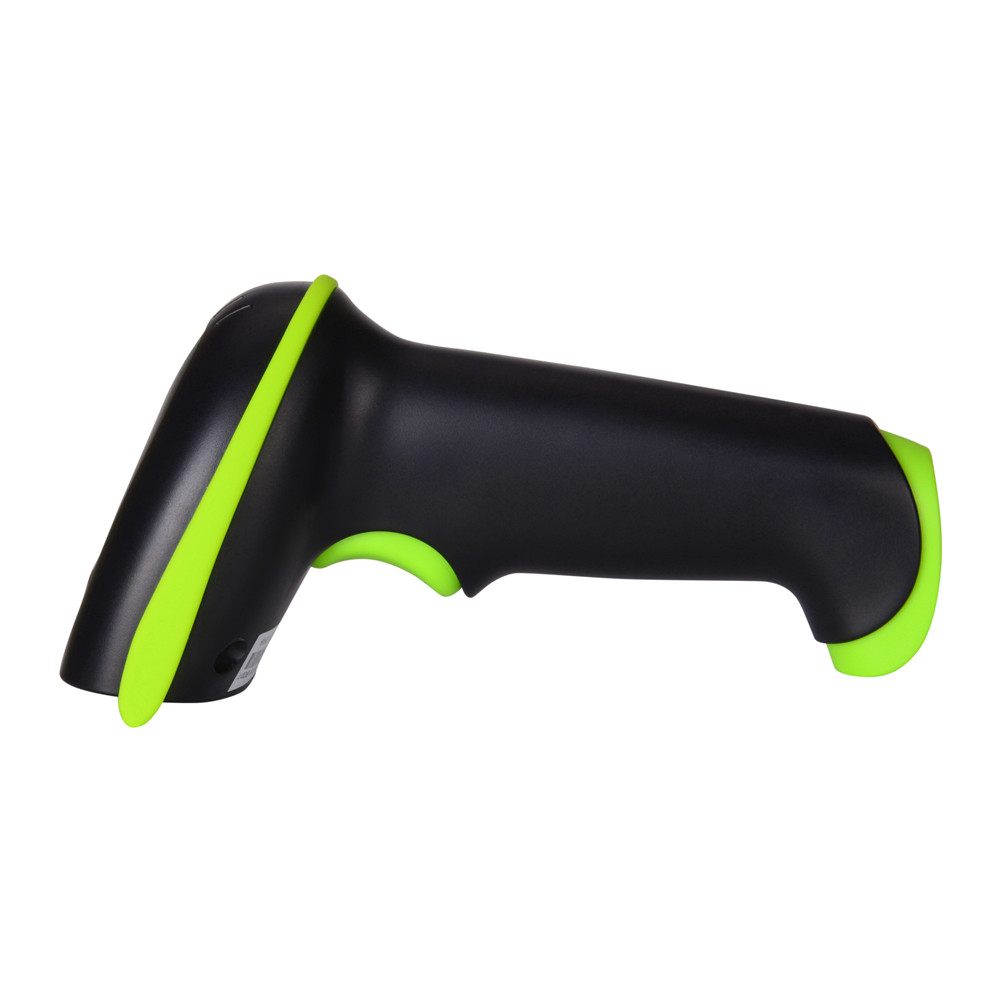

YHDAA 1D Cordless Laser Barcode Scanner,328 Feet Transmission Distance Bar code Reader UPC EAN Code
32Bit CPU super decoding ability that the speed can up to 100/sec.Anti-Shock Silicone: the Black silicone protective cover can avoid the scratches and friction while falling from the height of 6.56 feet; the technical of IP54 sturdy which protect the wireless barcode scanner from dust and moisture
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Read barcode as small as 3.3 mill.
● Support over twenty different countries' keyboard layout.
● Built-in 2600mAh battery, super-long standby time.
● 2.4G Wireless communication distance outdoor 100m,indoor 80m.
● With mini USB receiver, plug and play, Ergonomic design, comfortable to hold.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer,identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Product Specification
Transmission mode : 2.4G Wireless/Wired
Scanning type : bi-directional
Distance : 100m/1.5m
CPU : ARM 32-bit Cortex
Storage : 100000 barcodes
Battery: 3.7V-2600mAh
Trigger Mode : Button,Continuous
Light source : 650nm LD
Printing Contract : ≥25%
Indication : Buzzer & LED
Resolution : 3.3mil
Scanning width : 30cm
Decoding speed : 300scans/sec
Bit error rate : 1/20million
Button life : 8000,000 times
Laser life:12000 hours
Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Working current : 3.3Vx40mA Standby current :18uA-5mA
Working time : 7 to 10 days
Charging power : 5V-400mA
Drop test : 2.0m
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List : Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size : 167*80*100mm
Single Gross Weight : 0.28kg
50pcs/CTN Carton Size : 535*420*350mm
50pcs/CTN Carton G.W. : 14Kg, N.W:12Kg
|
|
