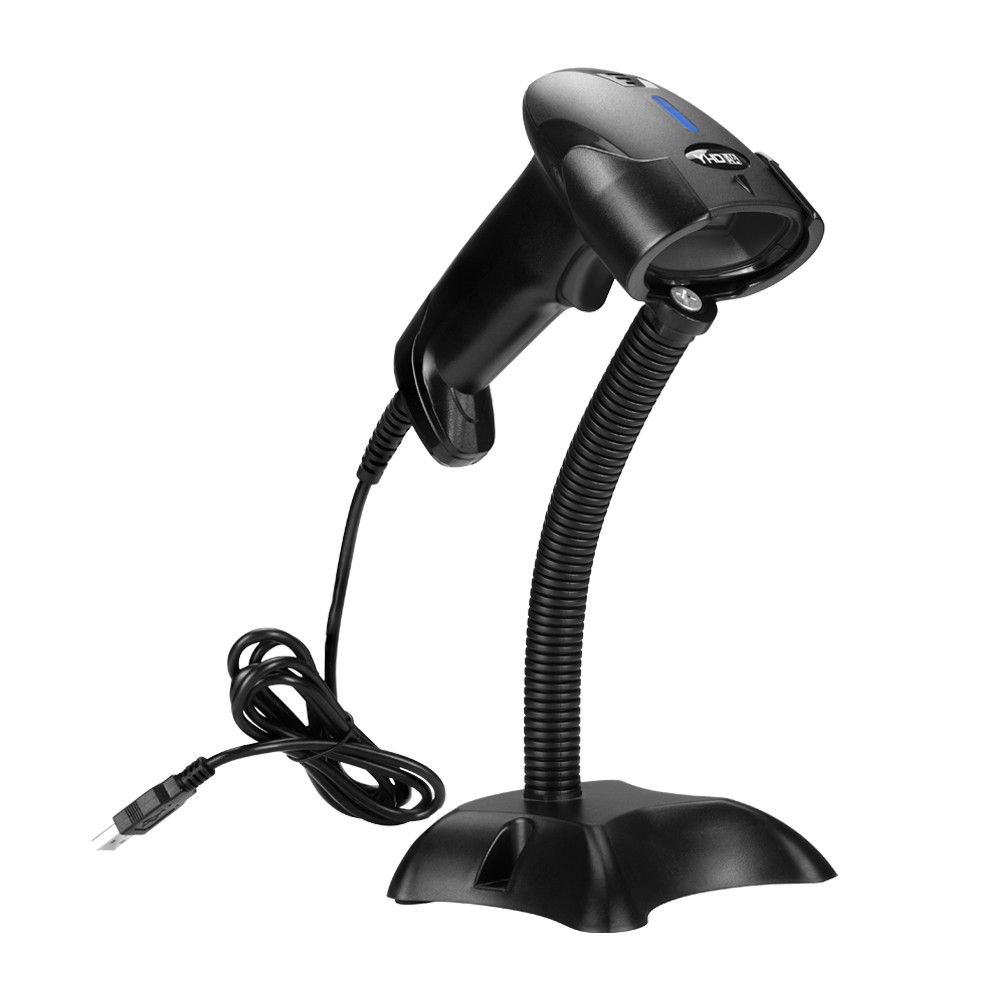

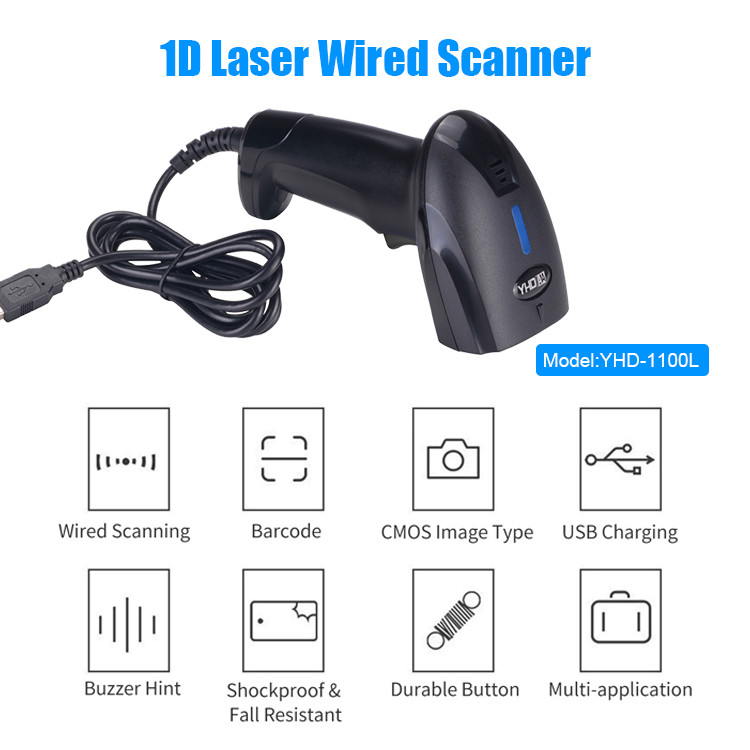

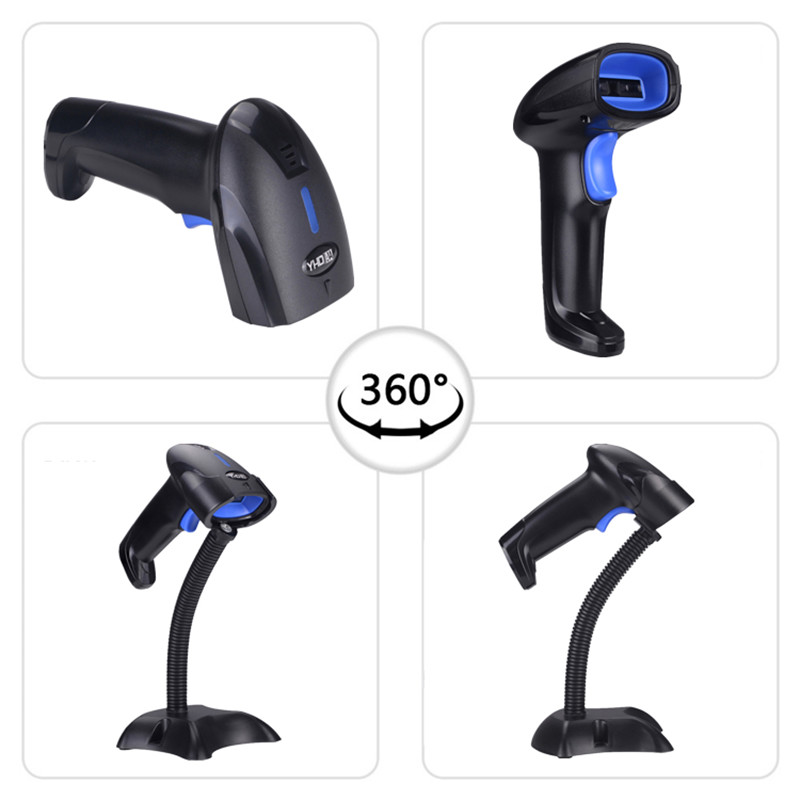

High Performance YHD-1100L+ Barcode Scanner Bracket for POS System

YHD-1100L+ Barcode reader, comes with stander for operating more easily, widely used in market, retail store, medical management, express & logistics industry, warehouse, library etc.

Features

● Factory direct sale, Low price high performance.

● No driver needed,plug and play.

● Support the multinational language keyboard.

● Service life of button reaches up to 5 million times.

● 32-Bit ARM processor and scan speed 300scans/sec.

● Manual trigger/continuous scan(for choice),very comfortable operating.

● High-efficiency recognization and high scan speed for improving your working efficiency.

● High-performance processor, fast decoding.

● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

Technical parameters

Scanning type : Bi-directional

CPU : ARM 32-bit Cortex

Light source : 650 nm visual laser diode

Trigger Mode : Handheld,Continuous

Resolution : 4mil

Decoding speed : 300scans/sec

Bit error rate : 1/5millon

Scanning width : 5-30cm

Scanning angle : rotor angel±30°,inclination± 55°,declination ± 60°

Anti inference : industrial lighting or sun will not make any difference

Decoding Capability : UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5,Code93,MSI,Code11, ISBN,ISSN,China post,etc

Interface : USB / RS232 / PS2 / TTL

Voltage : 5/3.3 V

Temperature Working : -20℃-50℃ Storage: -40℃-60℃

Material : ABS+PC

Drop test : 1.8m fall to concrete

Note:
The scanner can not scan the barcode on screen display.
Do not look into the light.

Packaging Details

Standard List: Scanner *1, USB Cable *1, Manual *1, Stand *1, Box *1.

Single Package Size: 185*120*86mm

Single Gross Weight: 0.4kg

30pcs/CTN Carton Size: 438*380*380mm
