10 Years Barcode Scanners & Thermal Printers Production Experience
3 Years
| Ask Lasest Price | |
| Brand Name : | YHDAA |
| Model Number : | YHD-1100C |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
1D CCD Barcode Scanner USB Connection Reader YHD-1100C Support Scan Mobile Payment Code
YHD-1100C Scan wireless barcode reader is equiped with advanced CCD sensor, which can quick capture 1D codes from paper and screen, including CODE128, UPC/EAN Add on 2 or 5, that can read even deformed barcodes, i.e. smudged, damaged, fuzzy, reflective barcodes, etc. Reading faster and more accurate than laser scanner.
Features
● Factory direct sale, Low price high performance.
● Scan speed: 200 Scans/sec.
● 2-500mm super depth of scan field.
● Can scan the phone, computer and other electronic screen.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Support multi keyboard language (English, Spanish, French, German etc).
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Optical Source : 620nm Visible red light diode
Imaging Sensor : CCD
Resolution Ratio : 1500 pixel
Interface : RS232,USB
Scan speed : 200 Scans/sec
Resolution : 4mil
Print Contrast : 30% minimum reflectance difference
BER : 1/5million
Shell Material : ABS + PC
Trigger Mode : Handheld,Continuous
Depth of field : 2mm-500mm
Indication : Buzzer, LED
Scanning angle : ± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)
Decoding capability : UPC / EAN / JAN, UPC / EAN with Supplementals, UCC / EAN 128,Code 39, MSI, Code11, Code 39 Full ASCII,, Code 128,Code 128Full ASCII, Codabar, Code93, Discrete2of5, RSSvariants,Codabar, Chinese2of5, Inteleaved2 / 5, Interleaved2of5, etc.
Power : 250 mW (work) : 500 mW (maximum instantaneous)
Current : 50 mA (work) : 100 mA (maximum instantaneous)
The light intensity : 3000-12000Lux
Charging input voltage : DC 5V ± 0.25 V
Temperature : -20 ℃to50 ℃(work):-40 ℃to60 ℃(storage)
EMC EMC : EN55022, EN55024
Electrical Safety : EN60950-1
Enclosure class : IP54

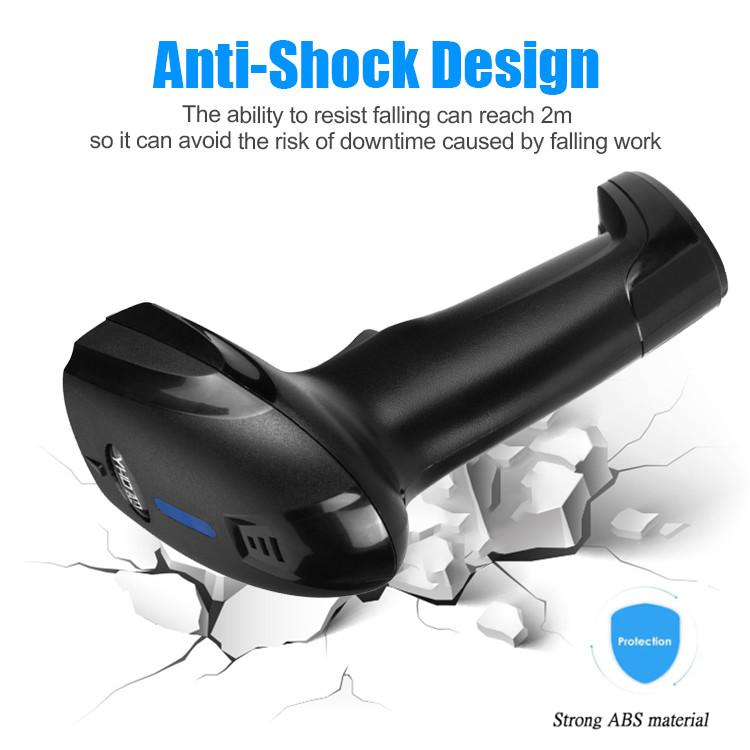

Seismic capacity : 2.0m fall to concrete
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 200*70*100mm
Single Gross Weight: 0.25kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
|
|
