| Brand Name : | YHDAA |
| Model Number : | YHD-1100C |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

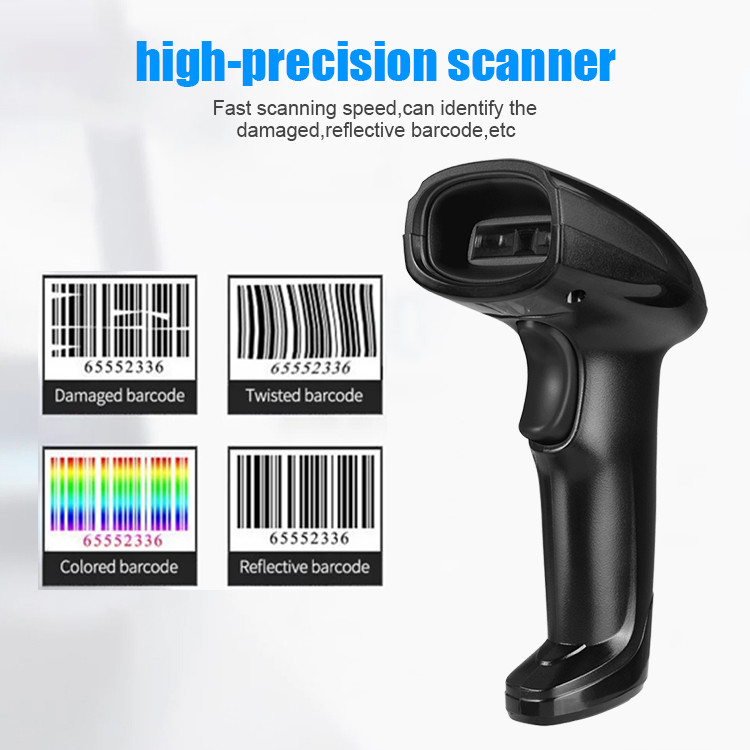

1D CCD Barcode Scanner Hand Held Products Scanners Factory Direct Sale YHD-1100C
YHD-1100C USB wired barcode scanner with key trigger scanning , auto-sensing scanning and continuous scanning mode, we can according to our needs to choose different scanning ways. Widely used in supermarkets, bookstore, shopping malls, retails, logistics, warehouse and others for file management, inventory tracking and point of sale.
Features
● Factory direct sale, Low price high performance.
● Scan speed: 200 Scans/sec.
● 2-500mm super depth of scan field.
● Can scan the phone, computer and other electronic screen.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Support multi keyboard language (English, Spanish, French, German etc).
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Optical Source : 620nm Visible red light diode
Imaging Sensor : CCD
Resolution Ratio : 1500 pixel
Interface : RS232,USB
Scan speed : 200 Scans/sec
Resolution : 4mil
Print Contrast : 30% minimum reflectance difference
BER : 1/5million
Shell Material : ABS + PC
Scanning angle : ± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)
Decoding capability : UPC / EAN / JAN, UPC / EAN with Supplementals, UCC / EAN 128,Code 39, MSI, Code11, Code 39 Full ASCII,, Code 128,Code 128Full ASCII, Codabar, Code93, Discrete2of5, RSSvariants,Codabar, Chinese2of5, Inteleaved2 / 5, Interleaved2of5, etc.
Power : 250 mW (work): 500 mW (maximum instantaneous)
Current : 50 mA (work): 100 mA (maximum instantaneous)
The light intensity : 3000-12000Lux
Charging input voltage : DC 5V ± 0.25 V
Temperature : -20 ℃to50 ℃(work):-40 ℃to60 ℃(storage)
EMC EMC : EN55022, EN55024
Electrical Safety : EN60950-1
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 200*70*100mm
Single Gross Weight: 0.25kg
|
|
