Embedded Barcode Reader Mini Qr Bar Code Fixed Mount Scanners TTL RS232 USB YHD-M801DS
Features
● Mini Size: 2.16 *1.6 *1.2cm/ 0.62 *0.55 *0.47in.
● Plug and play, driver-free, convenient for usage.
● Supporting the RS232,USB,TTL,Micro USB interface.

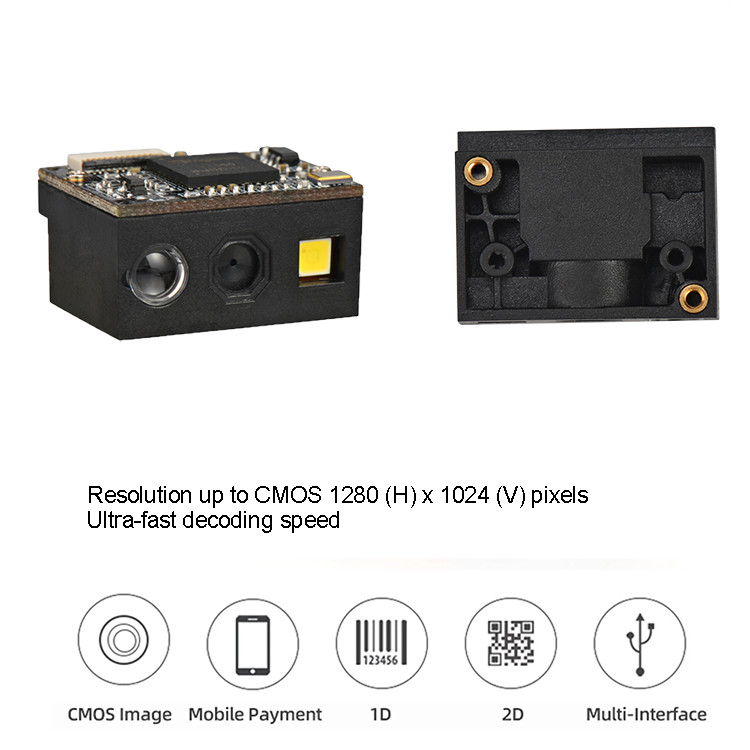

● Resolution up to CMOS 1280 (H) x 1024 (V) pixels ,ultra-fast decoding speed.
● Small size,easily to integrate into any device, especially for limit space application.
● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,PDA,etc.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor 1280×800 CMOS
Lighting White light LED
Focusing Red light LED
Decoding Capability :
2D : QR Code, Data Matrix, PDF417,Aztec, Maxicode,HanXin, Micro QR,Micro PDF417,etc
1D : EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar ,Code 11,Industrial 25, GS1 Composite,Standard 25,Plessey, Matrix 2 of 5,etc
Resolution : ≥4mil
Depth of Field : EAN-13 35mm-250mm (13mil),Code39 30mm-135mm (5mil),QR Code 35mm-460mm (20mil),Data Marix 25mm-190mm (10mil),PDF 417 20mm-170mm (6.67mil)
Minimum Contrast : ≥25%
Scanning angle : Angle of rotation360°,inclination± 55°,declination ±55°
Field of View : 52°(H) X38°(V)
Interface : TTL-232 , USB
Dimensions : 21.6(W)×16(D)×12(H)mm
Working Voltage : DC3.3 V
Working current : 220mA
Standby current : USB:20mA TTL:0.5uA
Working temperature : -20℃~+50℃ / -4°to 22°F
Storage temperature : -40℃~+70℃ / -40°to 158°F
Relative Humidity : 5%~95% (non-condensing)
Anti-interference : 0~100000LUX
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
|
|
