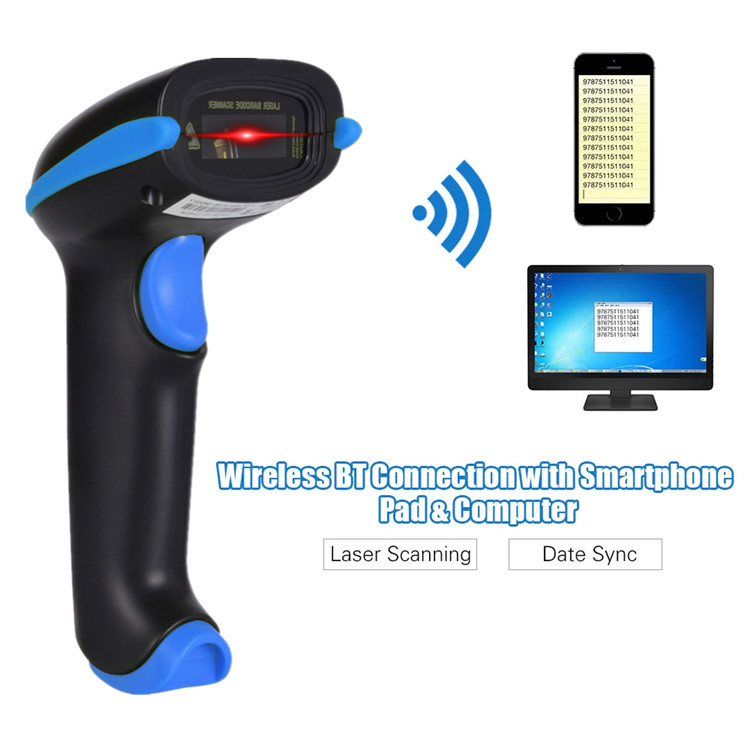

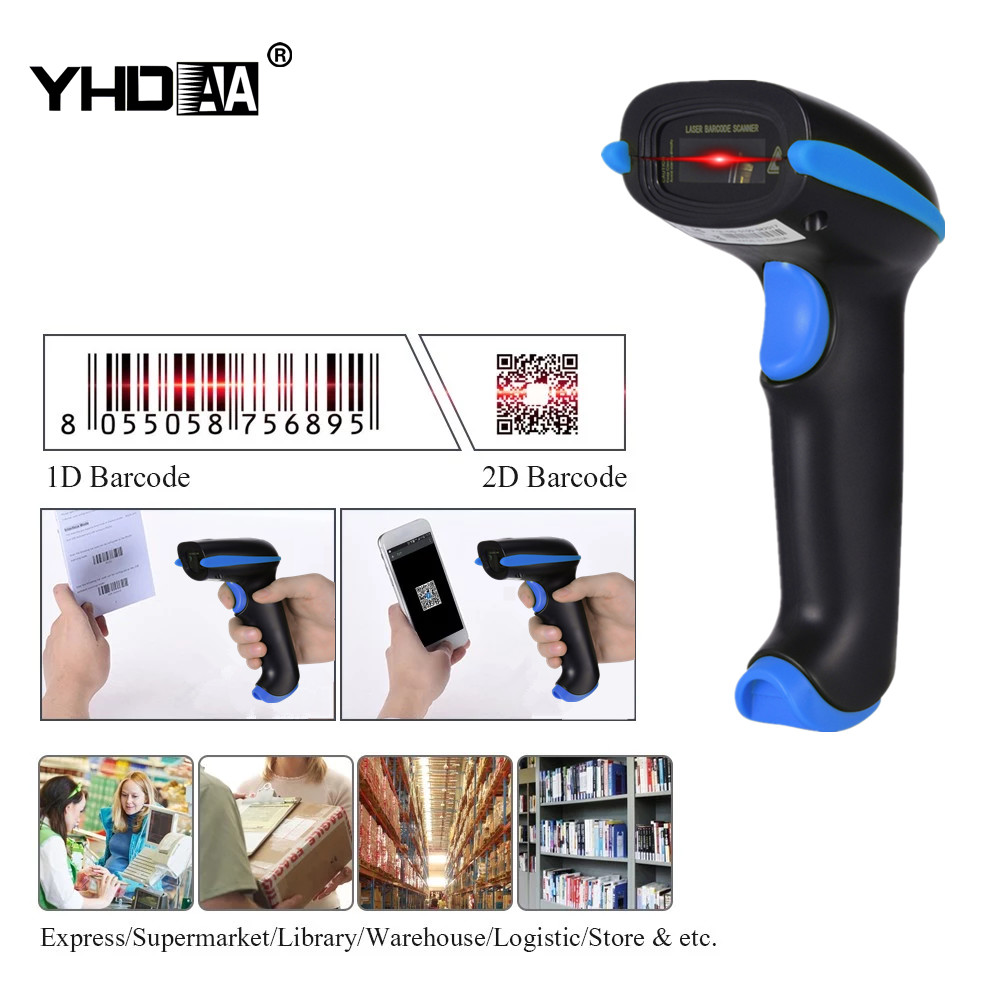

Handheld 2d Wireless Bluetooth Barcode Scanner For Inventory Qr Code Reader YHD-5700DB
Automatic Scanning & Storage Mode: Automatic scanning mode can be set for your needs. Automatic sensor scanning without pressing a button. When the scanner exceeds the connection distance, you can select the storage mode. In storage mode, up to 100,000 barcodes can be stored and uploaded directly when you return to within connecting distance.
Features
● This YHD-5700DB Wireless Bluetooth Barcode Scanner can be used to scan and decode 1D/2D/QR barcodes, excellent decoding ability, high speed and low error rate
● HID/SPP Mode and can switch.
● Supports Bluetooth/2.4G/Wired Mode, 3modes for option.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Support over sixteen different countries' keyboard layout.
● Built-in 2600mAh battery, super-long standby time.
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and computer screen, and it also can read 2D barcodes.
● Can be customized according to customer demand.
Technical parameter
Transmission mode : Bluetooth/2.4G/Wired
Storage : 100,000 barcodes
Distance : 50m/100m/1.5m
Sensor : 640*480 CMOS
CPU : ARM 32-bit Cortex
Battery : 3.7V-2600mAh
Indication : Buzzer & LED
Light aimer : 617nm LED
Resolution : 4mil
Anti-inference : 0-100000Lux Max
Decoding speed : 500scans/sec
Illumination : 6500K LEDs
Printing Contract : ≥25%
Interface : USB,USB-COM
Button life : 8000,000 times
Material : ABS+PC
Trigger Mode : Handheld,Continuous,Auto-Induction
Depth Of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,
Coda bar,MSI Plessey,RSS,etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Working current : 3.3Vx200mA Standby current : 18uA-5mA
Working time : 7 to 10 days
Charging power : 5V-400mA
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test : 2m
Standard List: Scanner*1, Cable *1, USB Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W.:11Kg
|
|
