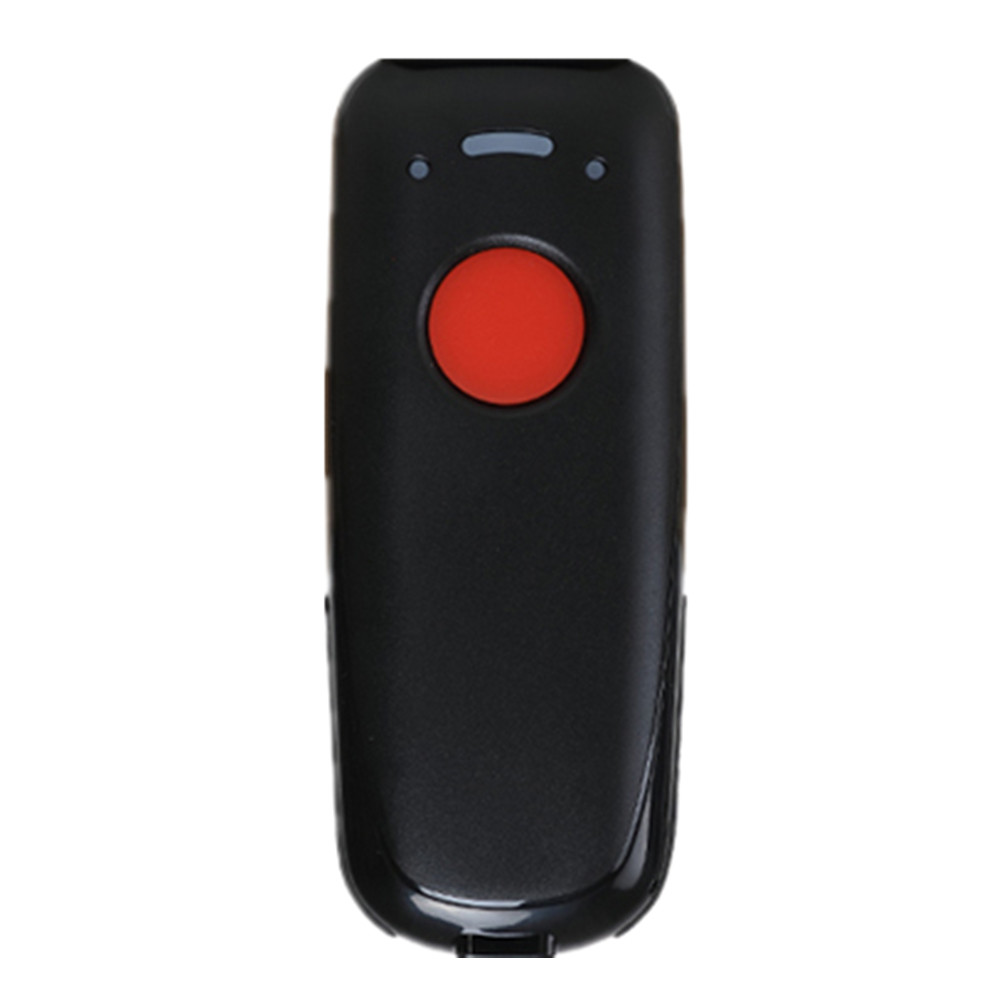

1D Portable Barcode Scanner Mini Bluetooth Scanners IOS Android Phone YHD-3600CB
The YHD-3600CB imager Barcode Scanner is equiped with advanced CMOS sensor, which can easily capture 1D/ 2D(QR/ PDF417/ Data Matrix,etc) bar codes from paper and screen, such as computer monitor, smartphone or tablet, effectively compensate for the problem that laser scanner can not identify screen code.
Features
● Bluetooth/Wired/Wireless three mode.
● Mini size, light and portable.
● 50m viewing distance wireless transmission.
● Storage:100000 barcodes.
● Support multi keyboard language.
● Support HID/SPP/BLE mode and can switch.
● Perfectly support various versions Windows, iOS, Android OS.
● Works with bluetooth enabled smartphones, tablet, notebooks and desktop computer.
● Supermarket, Retail, Warehouse,Logistic,Library, Tobacco, Medical etc.
● Can be customized according to customer demand
Technical parameters
Working current : 3.5 V ± 10%x100mA
Light source : 632nm Visible red light
Sensor : Linear CCD Sensor
Sensor resolution : 2500
CPU : ARM 32-bit Cortex
Decoding speed : 300/sec
Depth of Filed : 30-500mm
Indication : Buzzer & LED
Decoding accuracy : ≥3.3mil@PCS90% CODE39
Trigger Mode : Button,Continuous,Auto-Induction
Printing Contract : ≥30%
Scanning angle : Angle of rotation±30°,inclination± 60°,declination ± 60°
Anti-interference : 0-100000Lux Max
Decode Capability : EAN-8,EAN-13,Coda bar,CODE11,CODE 39,CODE 93,CODE128, China Post,GS1-128,GS1 Limited,GS1 Omnidirectional, UPC-A,UPC-E,Interleaved 2 of 5,Matrix 2of5,Industrial 2 of 5,ISBN/ISSN,MSI,Plessey,ITF14, etc.
Button life : 8000,000 times LED life:100000 hours
Drop test : 1.8m
Transmission : Bluetooth & 2.4G &USB-Wire
Working temperature : -20℃ to 50℃
Relative humidity : 5%-95%
Wireless type : Bluetooth/2.4G Wireless
Transmission distance : 50m/100m
Battery : 3.7V-1200mAh
Charging power : 5V-400mA
Working mode : Instant upload mode,Storage mode,Not lost mode
Storage : 16M=100000 barcodes
Working time : Full load≈18hours,Normal use ≈3 to 10days
Packaging Details

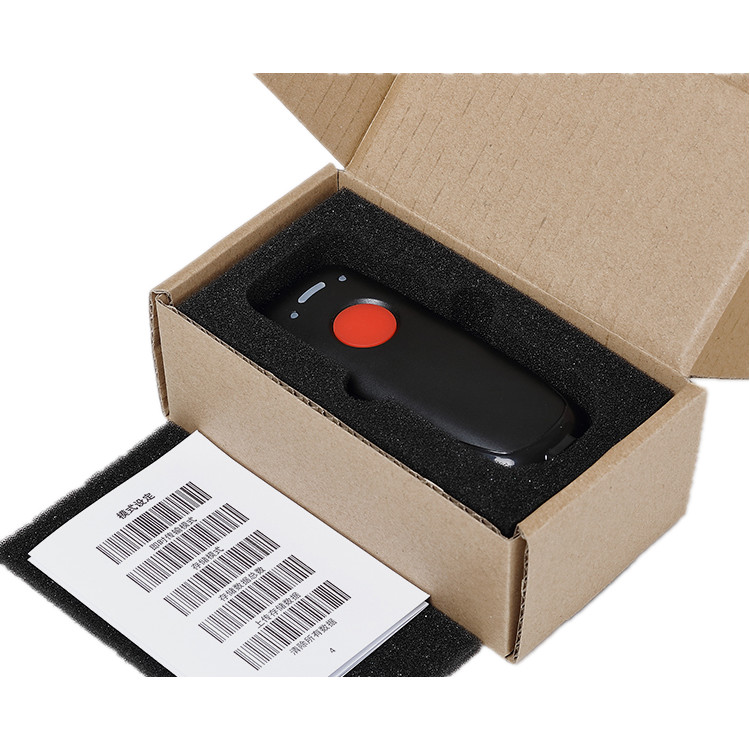

Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1
Single Package Size: 160*100*35mm
Single Gross Weight: 0.15kg
50pcs/CTN Carton Size: 530*195*340mm
50pcs/CTN Carton G.W.:9.2Kg, N.W:7.2Kg
|
|
