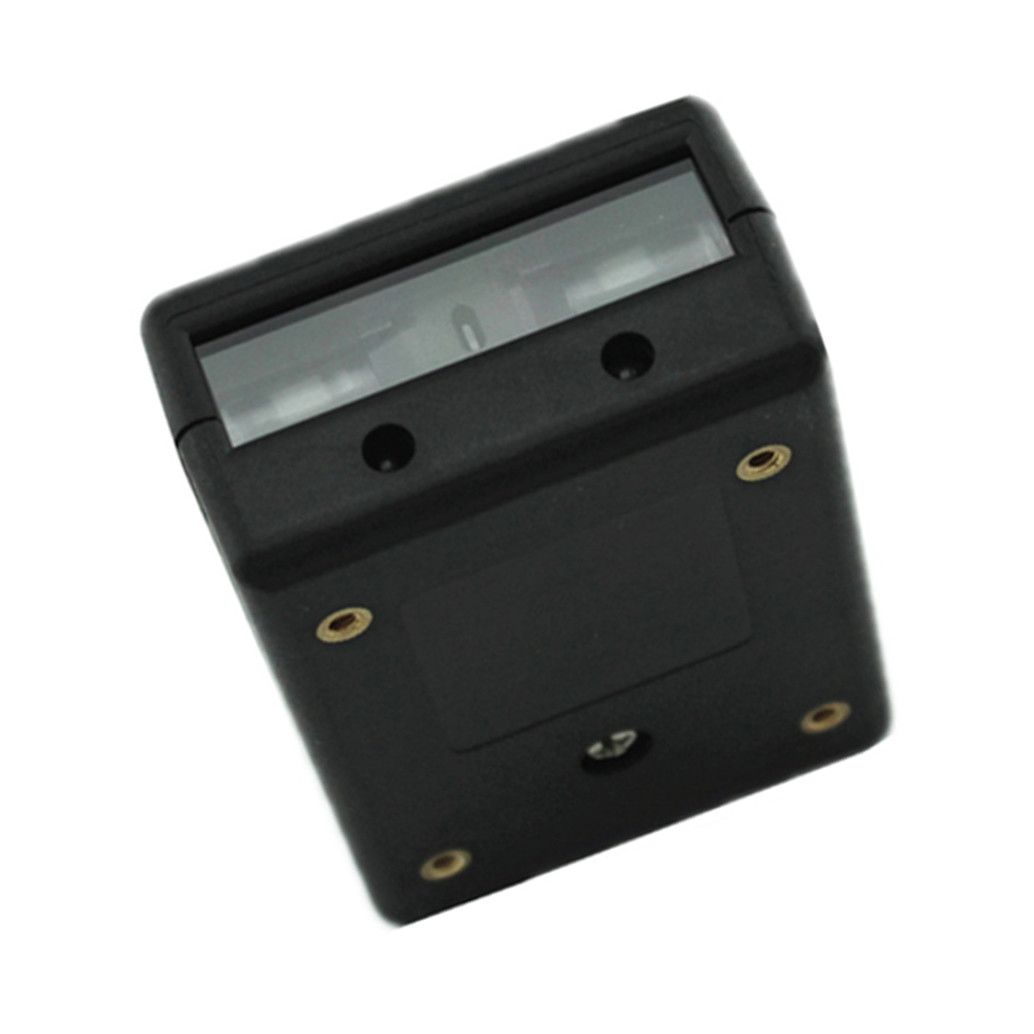

1D CCD Embedded Sacnner Module Fix-mounted Barcode Reader Engine,Support Screen Code Scan

Plug and play, easy to integrate, high-standard automation,The compact size has strong compatibility and versatility, and can be easily embedded in other terminal devices, Such as Locker, KIOSK, logistics express cabinets, independent card issuing machines, self-service ticket picking machines, automatic ticket checking machines, etc.

Technical parameters

CPU : ARM 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 2500 pixel

Imaging Sensor : CCD

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Decoding Speed : 300times/second

Interface : Micro USB,TTL,RS232,USB

Resolution : 4mil

Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)

Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°

Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0%-95%, no condensation state

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
