| Brand Name : | YHDAA |
| Model Number : | YHD-M300D |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

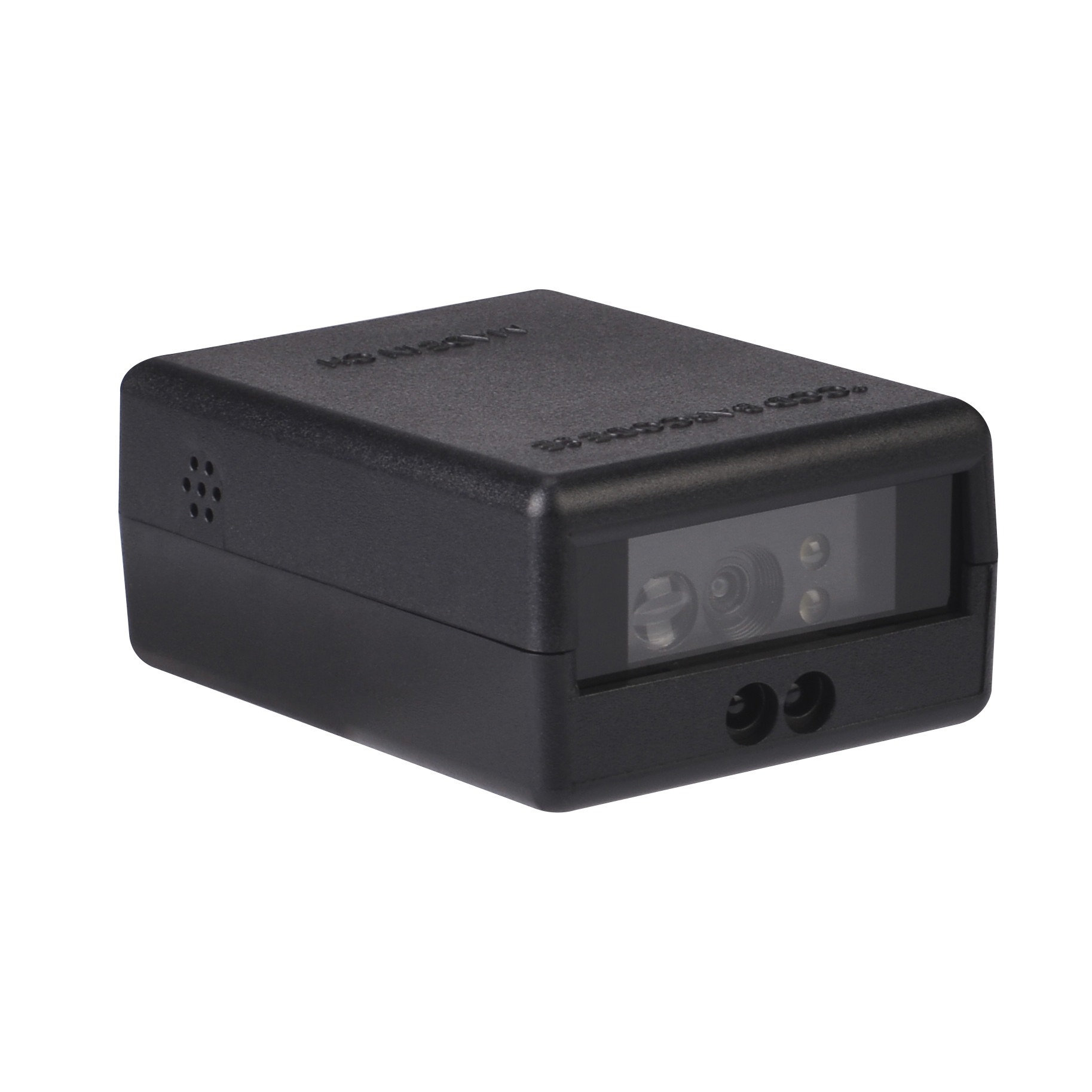

OEM Bar code Scan Engine Embedded Reader,Mini Size Compack Design 1D CCD Bacode Scanner YHD-M300C
Plug and play, easy to integrate, high-standard automation,The compact size has strong compatibility and versatility, and can be easily embedded in other terminal devices, Such as Locker, KIOSK, logistics express cabinets, independent card issuing machines, self-service ticket picking machines, automatic ticket checking machines, etc.
Features
● Mini Size: 5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.
● Powerful decoding capacity for most 1D codes.
● Plug and play, driver-free, convenient for usage.
● Supports Continuous/Auto-Induction , 2modes for option.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Small size,easily to integrate into any device, especially for limit space application.
● Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Can be customized according to customer demand.
Technical parameters
CPU : ARM 32-bit Cortex
Optical Source : 620nm Visible red light diode
Resolution : Ratio 2500 pixel
Imaging Sensor : CCD
Trigger Mode : Continuous,Auto-Induction
Indication : Buzzer & LED
Decoding Speed : 300times/second
Interface : Micro USB,TTL,RS232,USB
Resolution : 4mil
Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,
Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
International general 1D barcodes.etc
Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)
Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°
Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA
Working Voltage : DC5/3.3 V ± 10%
Storage Temperature : -40°C ~ 70°C / -40°to 158°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details

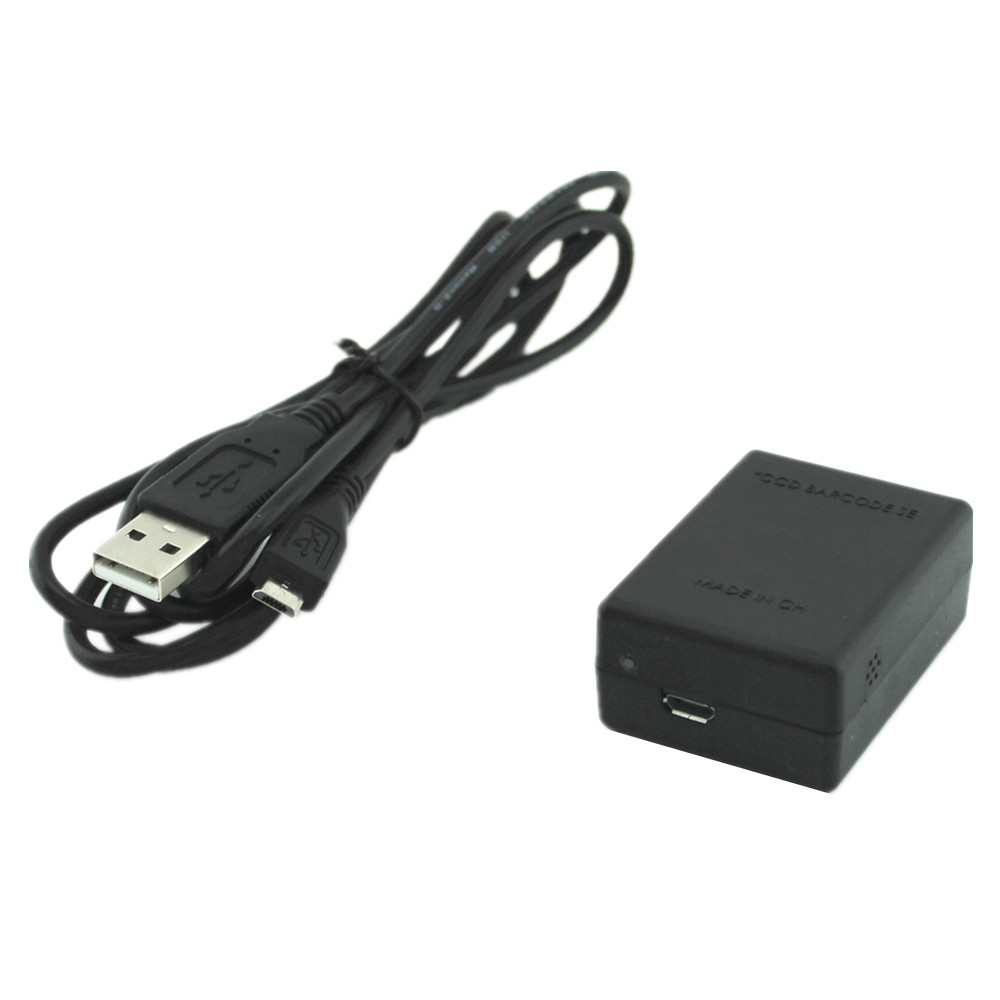

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.
Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)
Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
|
|
