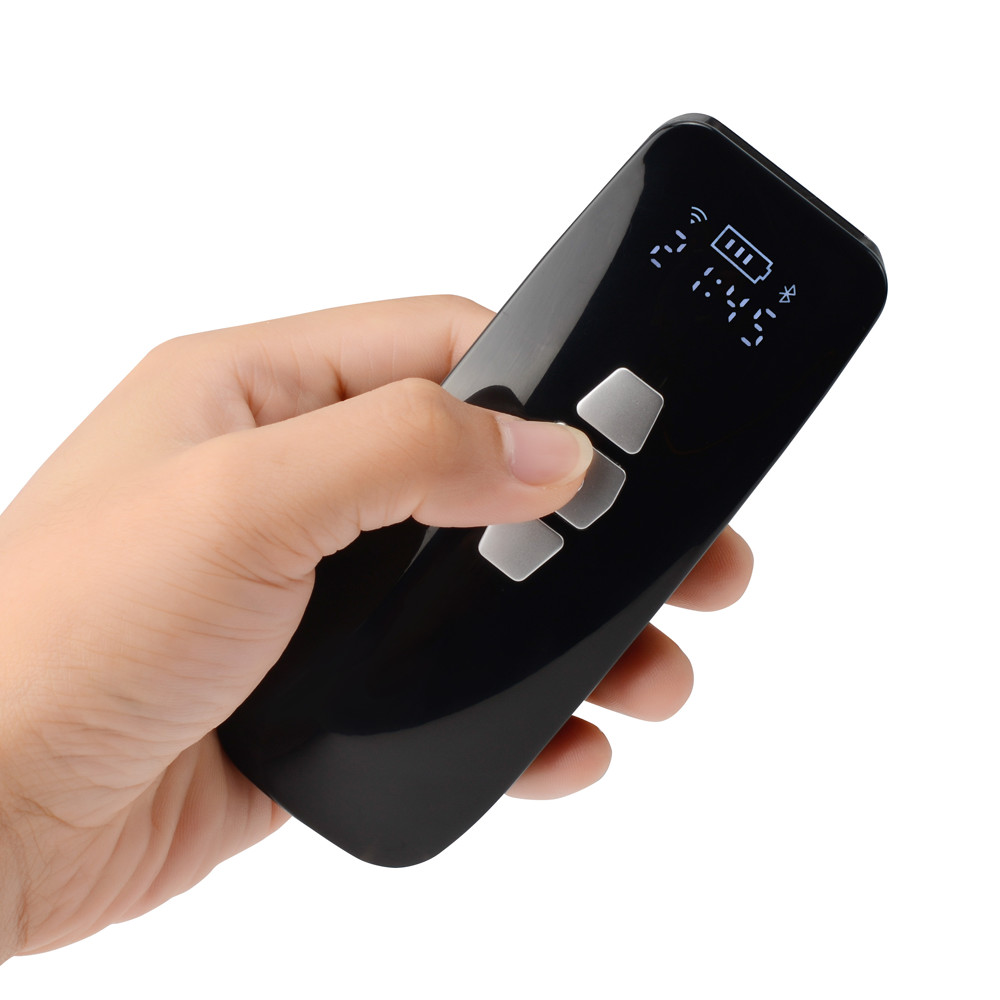

1D Mini Bluetooth Barcode Scanner Portable Design with Display Screen YHD-3200CB

YHD-3200CB Cordless barcode scanner supports to work with mobile phones, tablets and laptops. Allow the scanner to work with desktops and laptops with USB receiver or USB cable. The barcode scanner compatible with iOS,MacOs,Windows,Android.

Features

● Mini size, light and portable.

● 50m viewing distance wireless transmission.

● Bluetooth/2.4G/Wired Mode, 3modes for option.

● Support HID/SPP/BLE mode and can switch.

● Supports instant upload mode and storage mode.

● Excellent decoding ability, fast to scan 1D barcodes on paper/screen.

● Can store 100,000 barcode in offline storage mode, very convenient to use.

● Built-in 1500mAh Battery, it can support 18 hours Continuous scanning and 2 months standby after 4hours full charge.

● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

Technical parameters

Working current : 3.5 V ± 10%x100mA

Light source : 632nm Visible red light

Sensor : Linear CCD Sensor

Sensor resolution : 500

CPU : ARM 32-bit Cortex

Decoding speed : 300/sec

Depth of Filed : 30-500mm Indication:Buzzer & LED

Decoding accuracy:≥3.3mil@PCS90% CODE39

Trigger Mode : Button,Continuous,Auto-Induction

Printing Contract :≥25%

Scanning angle : Angle of rotation±30°,inclination± 60°,declination ± 60°

Anti-interference : 0-100000Lux Max

Decode Capability : EAN-8, EAN-13, Coda bar, CODE11,CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, Interleaved 2 of 5,Matrix 2of5,Industrial 2 of 5 , ISBN/ISSN,MSI,Plessey, ITF14, etc.

Button life : 8000,000 times

LED life : 100000 hours

Drop test : 2m

Transmission : Bluetooth & 2.4G &USB-Wire

Working temperature : -20℃ to 50℃ Relative humidity : 5%-95%

Wireless type:Bluetooth/2.4G Wireless Transmission distance:50m/100m

Battery : 3.7V-1500mAh Charging power : 5V-400mA

Working mode : Instant upload mode,Storage mode, Not lost mode

Storage : 16M=100000 barcodes

Working time : Full load≈18hours,Normal use ≈3 to 10days

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1

Single Package Size: 160*100*35mm

Single Gross Weight: 0.16kg

50pcs/CTN Carton Size: 530*195*340mm

50pcs/CTN Carton G.W.:9.5Kg, N.W:7.5Kg
