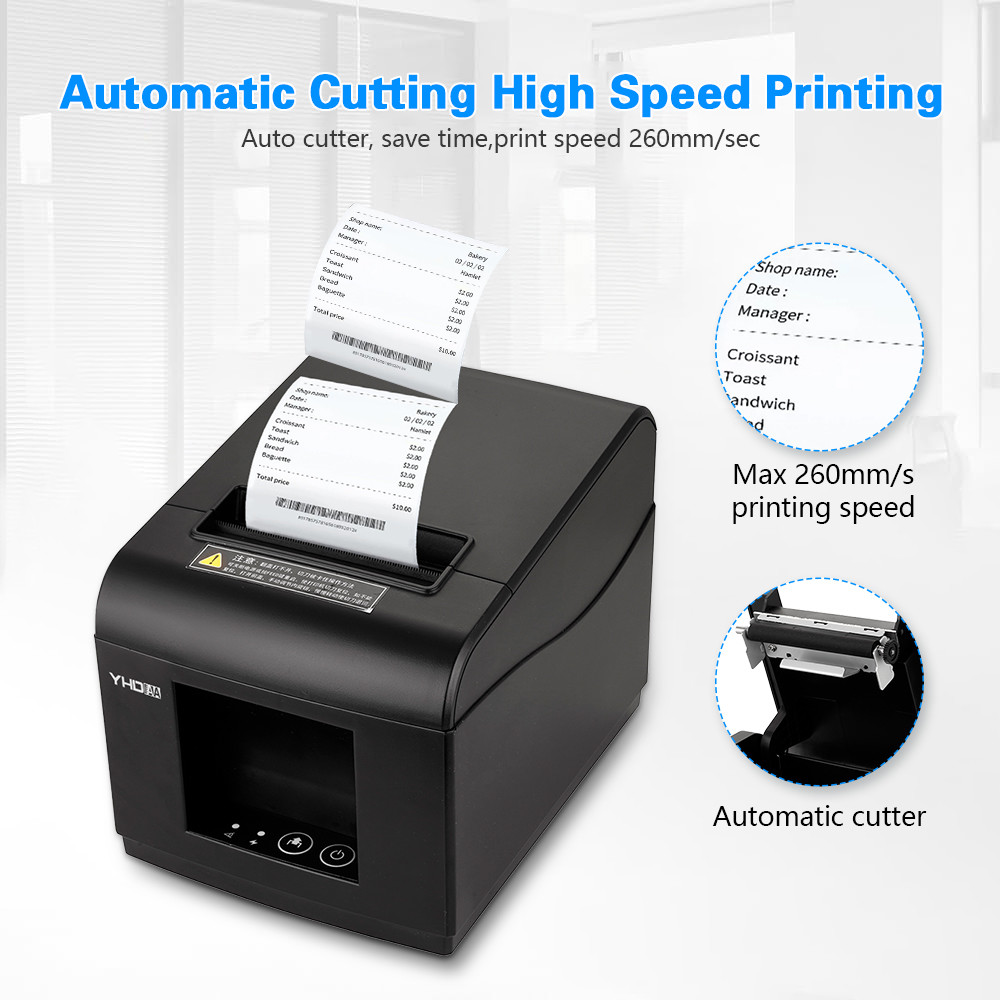

Highly Reliable 80mm Thermal Printer With USB/ Lan/ RS232/ Bluetooth/WIFI Interface Printers Machine
YHD-80E 80mm Thermal Printer is a high performance and reliable
device for printing on thermal paper. It offers a fast printing
speed of up to 230mm/s, and a crisp 203dpi resolution to produce
vivid images and texts. Its compatibility with a range of operating
systems, such as Windows, Linux, Android and iOS, ensures that you
can integrate it with your existing software. You can also use this
printer with thermal paper in widths of up to 80mm, making it ideal
for printing receipts, labels, and other small documents. This 80mm
Receipt Thermal Printer is a great choice for businesses that need
a fast and reliable printing solution
1. Features
● Cash drawer drive supported.
● Compatible with ESC/POS print instruction set.
● Support IAP online upgrade and black mark upgrade.
● Optional interface: USB/ USB+Lan/ USB+BT/USB+WIFI,etc.
● Excellent waterproof, anti-oil, anti-dust structure design.
● Support download and print logo & graphics. Support 1D,2D bar code printing.
● No ink cartridge or ribbon required, low operation cost, thermal paper is easy to buy.
● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.
● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.
2. Technical parameters
| Product Specification: YHD-80E 80MM Thermal Receipt Printer | |
| Interfaces: | USB/ USB+Lan/ USB+BT/USB+WIFI/USB+RS232,etc |
| Print Comand: | ESC/POS |
| Print Method: | Thermal Line Printing |
| Print Speed: | 230mm/sec; 260mm/sec |
| No. of Total Dots: | 576 dots/line |
| Auto Paper Cutter: | Full or Partial cut |
| Print Width: | 80mm |
| Character size: | ANK Font A: 12 x 24 dots; Font B: 9 x 17 dots Simplified/Traditional Chinese: 24 x 24 dots |
| NV Flash: | 256K bytes |
| Code: | 1D:UPC-1/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D: QR CODE/PDF417 |
| Compatible OS: | Window Systems ; Linux, Android & IOS Operate Systems |
| Paper & Electrical | |
| Type: | Roll Paper |
| Width: | 79.5±0.5mm |
| Line spacing: | 3.75mm(Adjustable by commands) |
| Roll Diameter: | 83mm |
| Paper Thickness: | 0.06-0.08mm |
| Power adaptor: | Input: AC:100-240V, 50-60Hz Output:DC 24V/2.5A |
| Cash Drawer Control: | 12V/1A |
| Cutter life: | 1.5 million cuts |
| Print Head: | Reliability |
| Print Reliability: | 150km |
| Physical &Environmental | |
| Temperature: | -10℃to 45 ℃(work): -20 ℃to 60 ℃(storage) |
| Humidity Working | 10%-90% |
| Warantty : | 12 months at least |
| Weight: | 0.85 Kg |
| Dimensions | 177*133.5*137.2mm(D*W*H) |
3. Packaging Details
* Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.
* Single Package Size: 220*195*150mm
* Single Gross Weight: 1.65KG
* 12pcs/CTN Carton Size: 62*46*33cm Carton G.W.:22KG
|
|
