Thermal Printer 80mm 203DIP Printing Resolution Bluetooth Receipt Printers For Pos
YHD-80E 80mm Receipt Thermal Printer is a highly efficient printing device with a printing resolution of 203dpi. It is suitable for printing on thermal paper with a width of 80mm and a thickness between 0.06-0.08mm. With its wide range of support for operating systems such as Windows, Linux, Android and iOS, it is an ideal choice for all kinds of printing tasks. It provides an economical yet reliable solution for producing high-quality images and text. It is an ideal thermal printer for printing receipts and other documents with great speed and accuracy.
1. Features
● Support multi languages.
● Cash drawer drive supported.
● Compatible with ESC/POS print instruction set.
● Support IAP online upgrade and black mark upgrade.
● Optional interface: USB/ USB+Lan/ USB+BT/USB+WIFI,etc.
● Support LED indicator light and prompt buzzer function.
● Excellent waterproof, anti-oil, anti-dust structure design.
● Support download and print logo & graphics. Support 1D,2D bar code printing.
● No ink cartridge or ribbon required, low operation cost, thermal paper is easy to buy.
● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.
● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.
2. Technical parameters
| Product Specification: YHD-80E 80MM Thermal Receipt Printer | |
| Interfaces: | USB/ USB+Lan/ USB+BT/USB+WIFI/USB+RS232,etc |
| Print Comand: | ESC/POS |
| Print Method: | Thermal Line Printing |
| Print Speed: | 230mm/sec; 260mm/sec |
| No. of Total Dots: | 576 dots/line |
| Auto Paper Cutter: | Full or Partial cut |
| Print Width: | 80mm |
| Character size: | ANK Font A: 12 x 24 dots; Font B: 9 x 17 dots Simplified/Traditional Chinese: 24 x 24 dots |
| NV Flash: | 256K bytes |
| Code: | 1D:UPC-1/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D: QR CODE/PDF417 |
| Compatible OS: | Window Systems ; Linux, Android & IOS Operate Systems |
| Paper & Electrical | |
| Type: | Roll Paper |
| Width: | 79.5±0.5mm |
| Line spacing: | 3.75mm(Adjustable by commands) |
| Roll Diameter: | 83mm |
| Paper Thickness: | 0.06-0.08mm |
| Power adaptor: | Input: AC:100-240V, 50-60Hz Output:DC 24V/2.5A |
| Cash Drawer Control: | 12V/1A |
| Cutter life: | 1.5 million cuts |
| Print Head: | Reliability |
| Print Reliability: | 150km |
| Physical &Environmental | |
| Temperature: | -10℃to 45 ℃(work): -20 ℃to 60 ℃(storage) |
| Humidity Working | 10%-90% |
| Warantty : | 12 months at least |
| Weight: | 0.85 Kg |

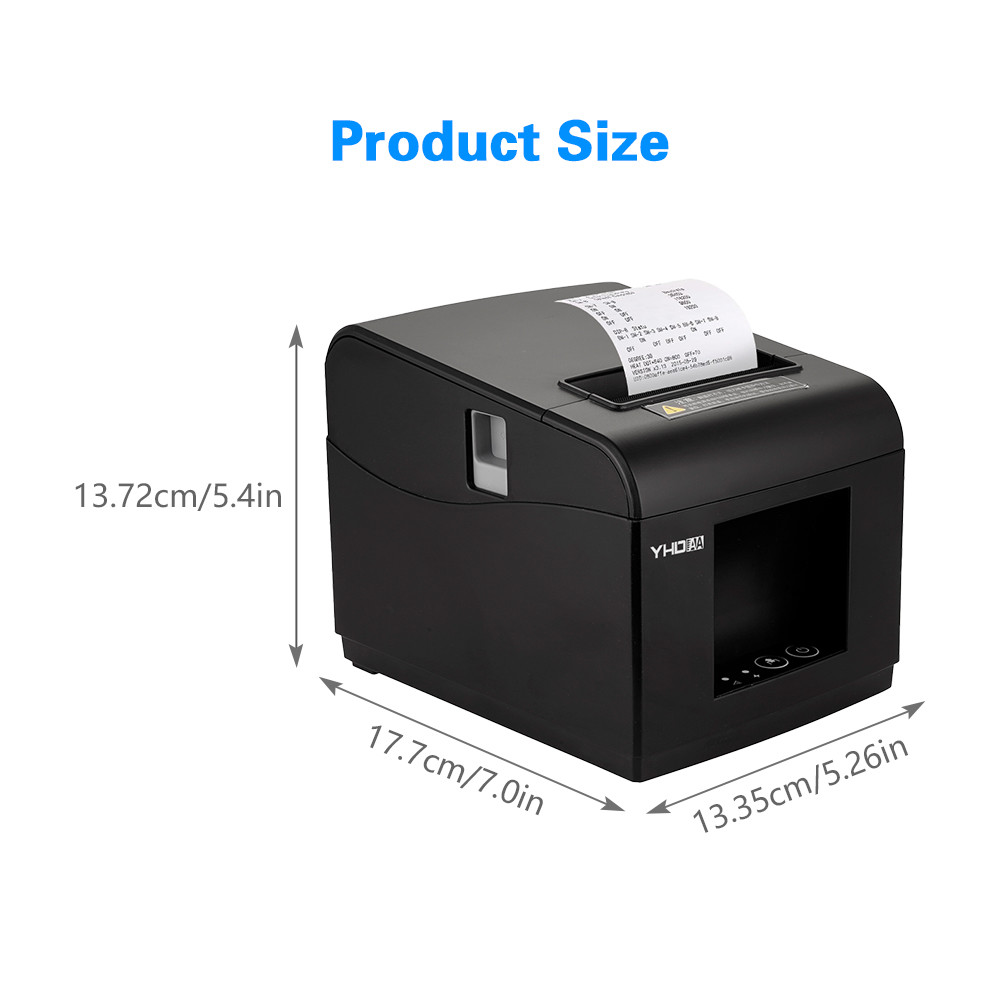

| Dimensions | 177*133.5*137.2mm(D*W*H) |
3. Packaging Details
* Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.
* Single Package Size: 220*195*150mm
* Single Gross Weight: 1.65KG
* 12pcs/CTN Carton Size: 62*46*33cm Carton G.W.:22KG
|
|
