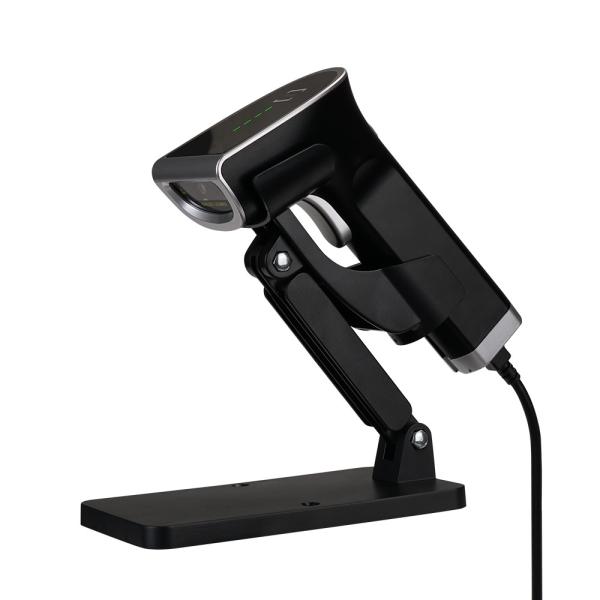

YHDAA Handheld Laser Barcode Scanner 1D With Stand Scanners
6700L laser barcode scanner is a high-performance solution designed for efficient and accurate scanning of 1D barcodes in various industries. Utilizing advanced laser technology, this scanner offers fast and reliable barcode scanning capabilities, making it an essential tool for businesses that require quick and precise data capture.
1. Features
● 300scans/sec decoding speed, 3.3mil resolution.
● Support the multinational language keyboard.
● Compatible with Windows, Mac, Android, and Linux.
● Plug and play, read all the standard 1D bar codes.
● 32-bit high-speed processor, with powerful decode capacity.
● Supports Handheld/Continuous, 2modes for optional.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Ergonomic design offer comfortable operation and enhance the working efficiency.
● Startup and Shutdown button humanized design,One-key power-on /off at any time.
● Support custom settings, like add/hide prefix or suffix, hide characters from the front/back, add keyboard keys (TAB, CR, etc.), change the capital/lower case, etc.
● Application fields:Supermarket, Convenience stores, Warehouse,Logistic,Library, Medical.
● Can be customized according to customer demand.
| Product Specification: YHD-6700L+ 1D Laser Wired Barcode Scanner with stand | ||
| Electrical parameter | 5/3.3 V ± 10%x100mA (idle:10mA) | |
| Scanning type | bi-directional | |
| CPU | ARM 32-bit Cortex | |
| Light source | 650 nm visual laser diode | |
| Trigger Mode | Handheld,Continuous | |
| Indication | Buzzer & LED | |
| Printing Contract | >25% | |
| Resolution | 3.3mil | |
| Decoding speed | 300scans/sec | |
| Bit error rate | 1/5millon,1/20million | |
| Scanning width | 30cm | |
| Depth of Field | 3.3mil | 2mm-100mm |
| 10mil | 2mm-350mm | |
| 15.6mil | 5mm-600mm | |
| 35mil | 10mm-1000mm | |
| Scanning angle | rotor angel±30°,inclination± 45°,declination ± 60° | |
| Anti inference | industrial lighting or sun will not make any difference | |
| Decoding Capability | UPC/EAN,with complementary UPC/EAN Code128, Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5, Code93,MSI,Code11, ISBN, ISSN,China post,etc | |
| Button life | 8000,000 times ; laser life:12000 hours | |
| Drop test | 2.0m fall to concrete | |
| Interface | USB | |
| Certificate | CE,FCC,RoHS,IP54 | |
3. Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1, Stand*1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.25kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
|
|
