10 Years Barcode Scanners & Thermal Printers Production Experience
3 Years
| Ask Lasest Price | |
| Brand Name : | YHDAA |
| Model Number : | YHD-6700L |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification : | CE,FCC,ROHS,IP54,FDA,SGS |

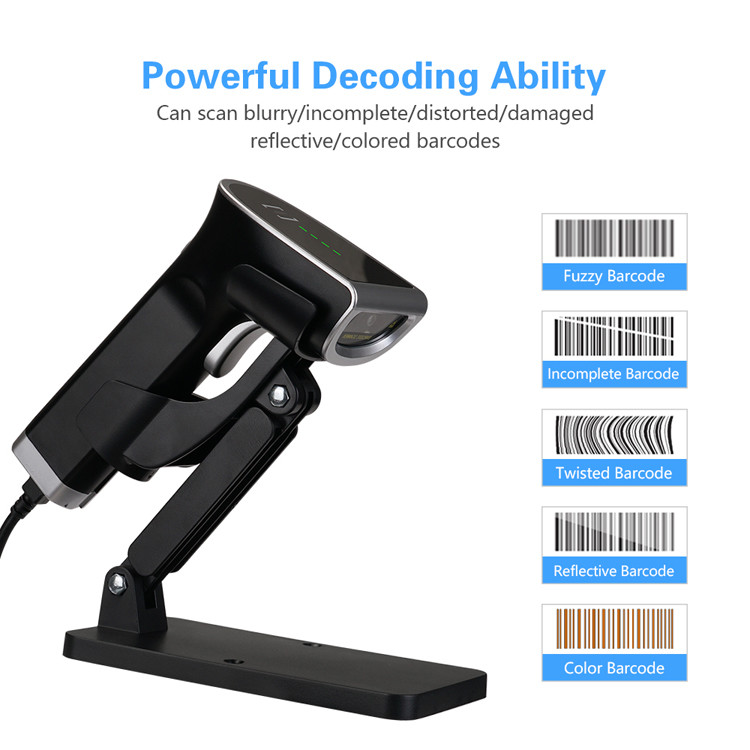

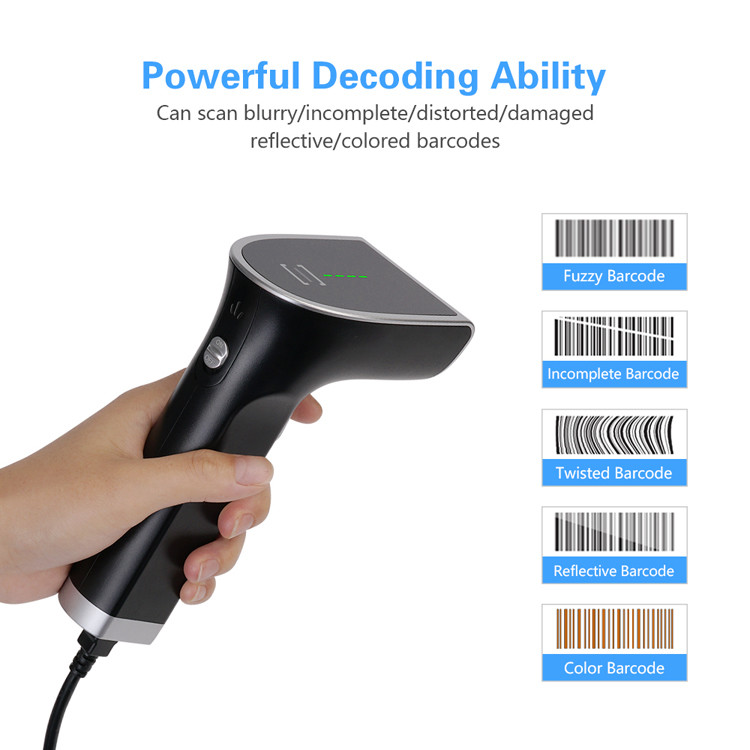

1.Features
● 300scans/sec decoding speed, 3.3mil resolution.
● Support the multinational language keyboard.
● Compatible with Windows, Mac, Android, and Linux.
● Plug and play, read all the standard 1D bar codes.
● 32-bit high-speed processor, with powerful decode capacity.
● Supports Handheld/Continuous, 2modes for optional.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Ergonomic design offer comfortable operation and enhance the working efficiency.
● Startup and Shutdown button humanized design,One-key power-on /off at any time.
● Support custom settings, like add/hide prefix or suffix, hide characters from the front/back, add keyboard keys (TAB, CR, etc.), change the capital/lower case, etc.
● Application fields:Supermarket, Convenience stores, Warehouse,Logistic,Library, Medical.
● Can be customized according to customer demand.
| Product Specification: YHD-6700L 1D Laser Wired Barcode Scanner | ||
| Electrical parameter | 5/3.3 V ± 10%x100mA (idle:10mA) | |
| Scanning type | bi-directional | |
| CPU | ARM 32-bit Cortex | |
| Light source | 650 nm visual laser diode | |
| Trigger Mode | Handheld,Continuous | |
| Indication | Buzzer & LED | |
| Printing Contract | >25% | |
| Resolution | 3.3mil | |
| Decoding speed | 300scans/sec | |
| Bit error rate | 1/5millon,1/20million | |
| Scanning width | 30cm | |
| Depth of Field | 3.3mil | 2mm-100mm |
| 10mil | 2mm-350mm | |
| 15.6mil | 5mm-600mm | |
| 35mil | 10mm-1000mm | |
| Scanning angle | rotor angel±30°,inclination± 45°,declination ± 60° | |
| Anti inference | industrial lighting or sun will not make any difference | |
| Decoding Capability | UPC/EAN,with complementary UPC/EAN Code128, Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5, Code93,MSI,Code11, ISBN, ISSN,China post,etc | |
| Button life | 8000,000 times ; laser life:12000 hours | |
| Drop test | 2.0m fall to concrete | |
| Interface | USB | |
| Certificate | CE,FCC,RoHS,IP54 | |
3. Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 167*80*100mm
Single Gross Weight: 0.25kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
|
|
